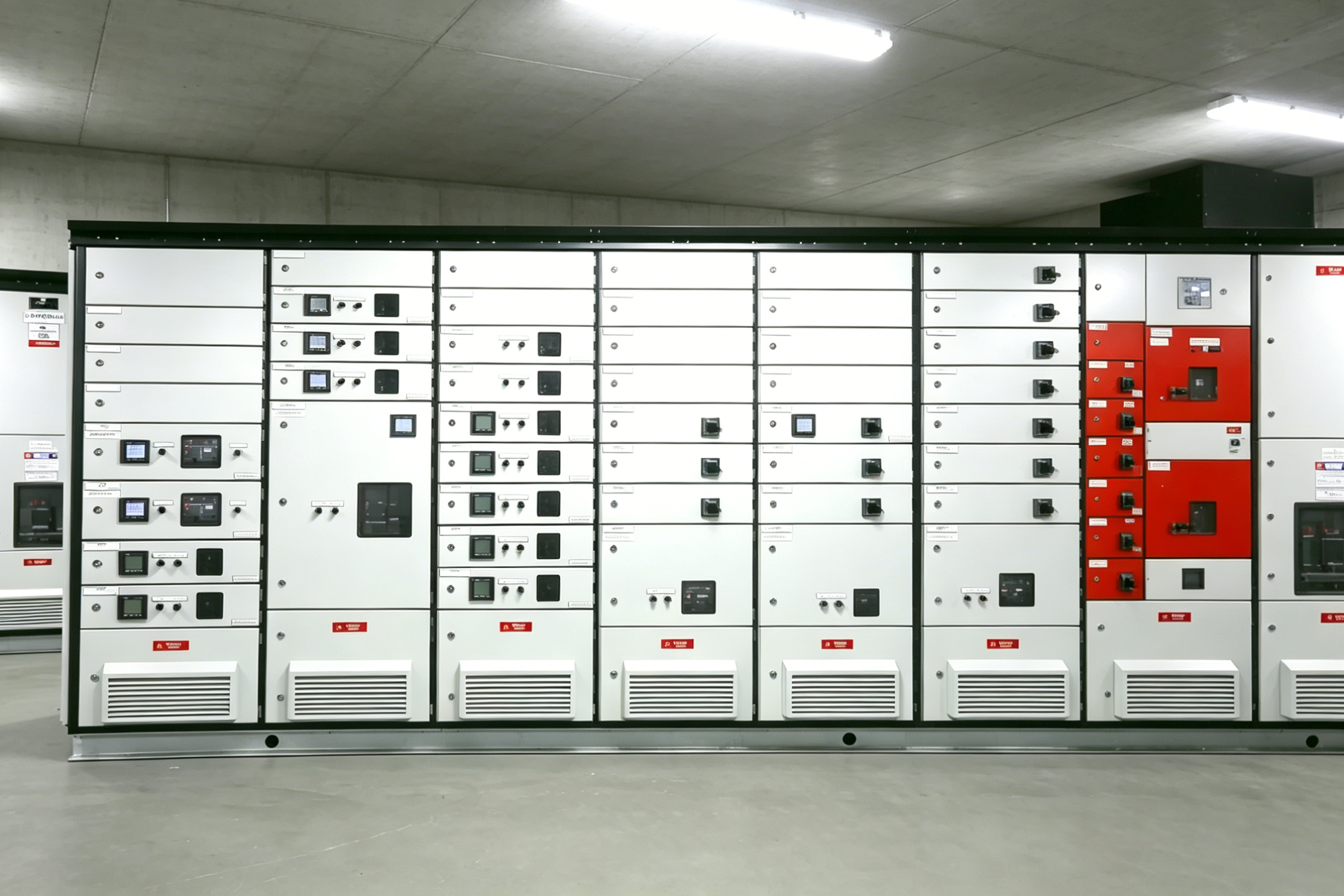

Australian Main Switchboard (MSB) Overview

In Australia, the Main Switchboard (MSB) is the central hub of a building or industrial electrical system. It receives high-current power from the utility or substation and distributes it to various branch circuits. The MSB not only handles the facility’s primary electrical load but also ensures safe and reliable operation throughout the system.

1. Standards and Regulations
Australian main switchboards must comply with strict local standards to guarantee safety and regulatory compliance:
- AS/NZS 61439 Series: Standards for low-voltage switchgear and controlgear assemblies, covering insulation, mechanical strength, IP protection, temperature rise, and short-circuit withstand.
- AS/NZS 3000 Wiring Rules: Electrical installation rules that define grounding, shock protection, and overcurrent device selection.
- AS/NZS 3012 (if applicable): Requirements for temporary or construction site switchboards.
- IP Ratings (AS 60529 / IEC 60529): Commonly IP31, IP42, or IP54 to ensure protection against dust and water.

2. Design and Key Components
A main switchboard typically includes:
- Main Switch: Provides complete isolation of incoming power for safety.
- Copper Busbars: High-conductivity materials, such as electrolytic copper compliant with ASTM B187, designed to handle rated currents and short-circuit capacity.
- Branch Protection Devices: MCBs, RCBOs, or RCDs for protecting individual circuits.
- Monitoring & Metering: Instruments such as ammeters, voltmeters, and power meters for real-time system monitoring.
Design considerations include temperature rise, short-circuit capacity, redundancy, and operational convenience to ensure reliable performance throughout the life of the building.

3. Certification and Compliance
Main switchboards in Australia must be SAA/RCM certified, confirming compliance with local electrical safety regulations. Each MSB undergoes thorough testing for temperature rise, insulation, grounding, and short-circuit withstand before leaving the factory, and full test reports are provided for on-site verification.

4. DSJ Electrical Expertise
As a manufacturer specializing in the Australian market, DSJ Electrical delivers high-quality, fully certified main switchboards. Whether for commercial buildings, industrial facilities, or temporary construction sites, DSJ provides tailored MSB solutions designed to meet AS/NZS standards. Our products ensure safety, reliability, and excellent performance, backed by professional technical support.
