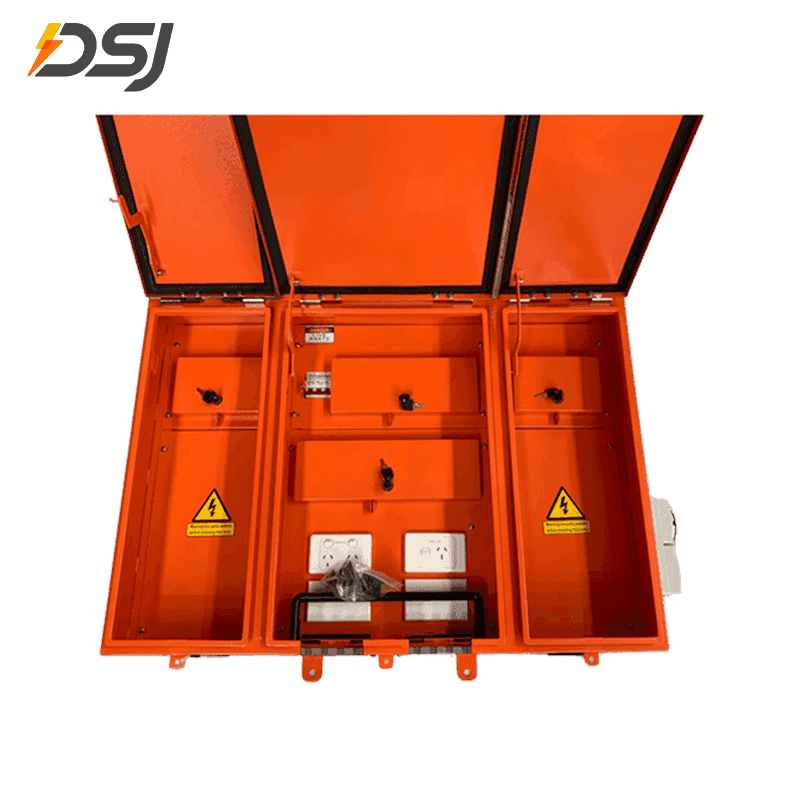

Temporary Site Power Board

AS/NZS 3012 Switchboard – Three Phase Temporary Power Distribution Board, Hi-Visibility X15 Orange, IP44 Rated

This plug-and-play unit requires no complex wiring or licensed electrician installation, greatly boosting on-site efficiency and cutting labor costs. It features full electrical protection (overload, short-circuit, residual current), safeguarding personnel and equipment.

Made of high-strength, corrosion-resistant materials with IP56/IP66 protection, the enclosure withstands harsh outdoor conditions (rain, dust, high humidity) for reliable long-term operation.

contact us Prev ProductNext Product

Standard Capacity

Country of Origin	China
Enclosure Protection Rating	IP44-IP66
Rated Frequency	50Hz/60Hz
Certification Standards	AS3012/AS61439.4
Mounting method	Wall
GPO Double	x1;10A
GPO Single	x1;15A
Main Switch	100A;4P
Lighting Test Point	x1；10A
MCB	32A;3P
RCD	40A;4P
RCBO	x4;20A;1P;6kA
Switched Socket Outlet	5Pin;32A;3P
Blank Plates	x2
External Board Isolator	100A, 4P, lockable
Loop Isolator / Submain	100A, 4P, lockable

Product Features

Rugged & Portable Design:

Compact enclosure with wall-mount or stand options, easy to transport and install on construction sites, tunnels, outdoor events, and mining projects.
Compliant with Australian Standards:

Fully certified to AS/NZS 3000 (including Clause 2.6.2.2.2), AS/NZS 3012, AS/NZS 61439.4, and AS/NZS 60529, ensuring safe and legal operation on all Australian work sites.
Cost-Effective – 30% Below Local Price:

Significantly reduce project costs without compromising quality or compliance.
