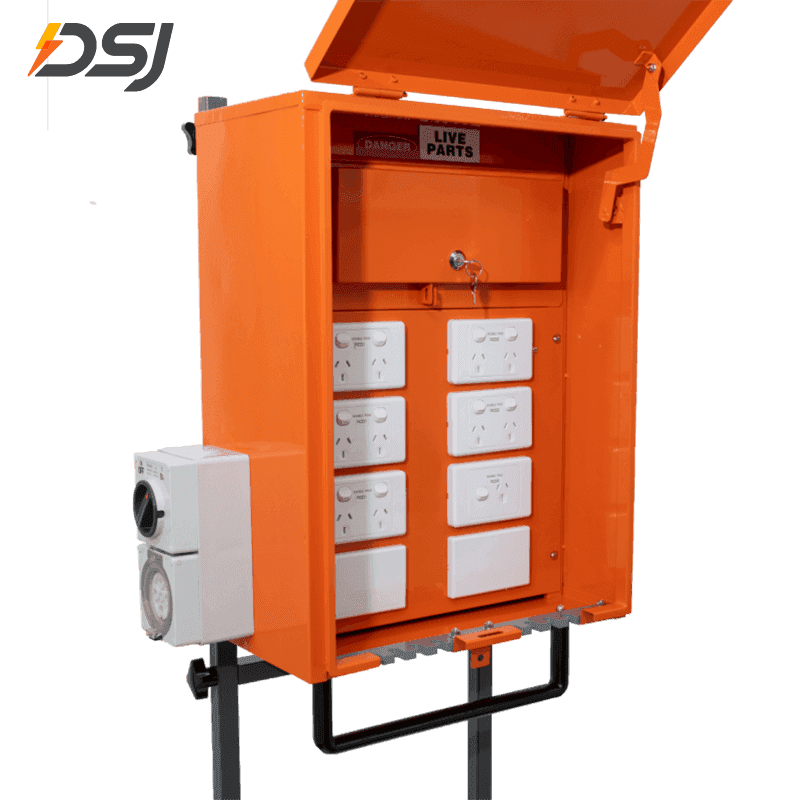

Temporary Site Power Board

Construction Switchboard with Type A RCDs & RCBOs – Hi-Visibility X15 Orange, IP44 Enclosure for Three Phase Site Power

Our temporary power board is designed for demanding construction and industrial sites, offering safe, reliable, fast-deployable power solutions.
The robust enclosure features a standard IP44 rating, with optional IP66 protection, ideal for harsh outdoor environments.
Fitted with MCBs, RCDs and RCBOs, the system safeguards personnel and prevents equipment damage from electrical faults.

contact us Prev ProductNo Next Product

Standard Capacity

Country of Origin	China
Enclosure Protection Rating	IP44-IP66
Rated Frequency	50Hz/60Hz
Certification Standards	AS3012/AS61439.4
Phases	Three Phase
Mounting method	Stand / Wall
GPO Double	x5;10A
GPO Single	x1;15A
Main Switch	100A;3P
MCB	32A;3P;6kA
RCD	40A;4P;6kA
RCBO	x3;20A;1P;6kA
25mm Mains	165A
Switched Socket Outlet	5Pin;32A;3P
Active and neutral loop-in/out link set	4 Hole
Blank Plates	x2

Product Features

Customisation Service:

Available customisation options include additional submains, lighting circuit protection, emergency light test kit, lockable external isolator, combination switched sockets, additional GPOs, external terminal connections, external upstream isolation, lighting test point, and wall mount option.
Compliant and Type Tested:

Compliant with AS/NZS 3000 (including Clause 2.6.2.2.2), AS/NZS 3012, AS/NZS 61439.4, and AS/NZS 60529.
Our Advantages:

30% below local price
20-day delivery
Quality guaranteed
