Temporary Site Power Board

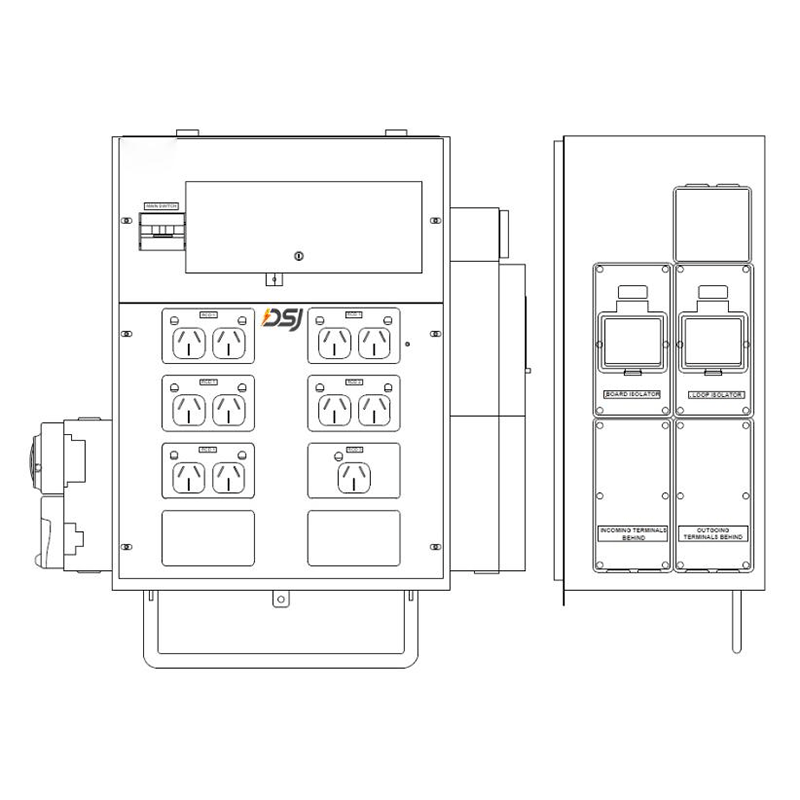

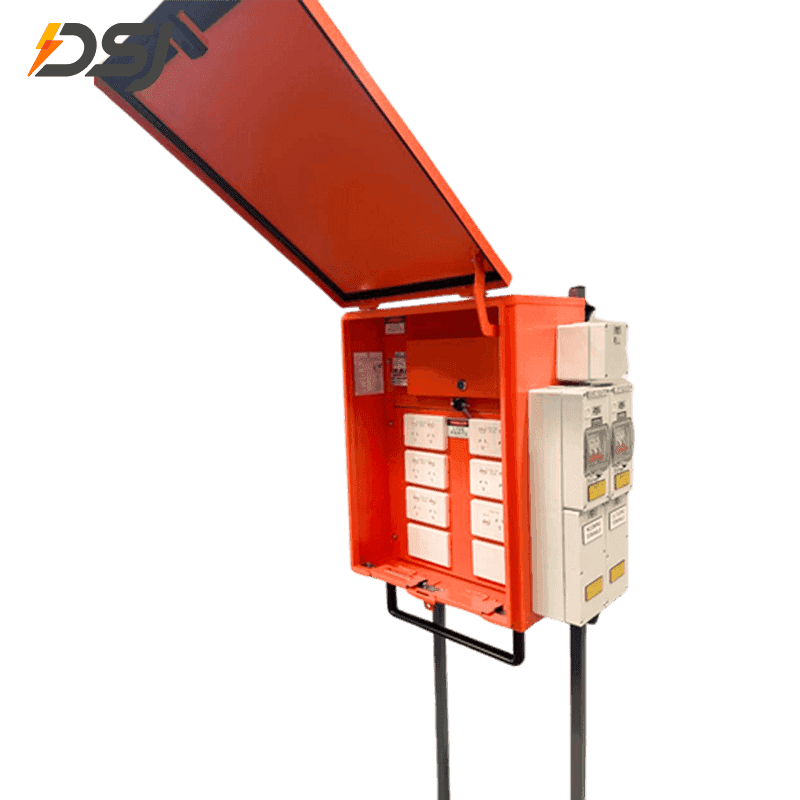

Temporary Site Power Board – Three Phase, IP44 Enclosure, Type A RCDs & RCBOs, Hi-Visibility X15 Orange

Temporary Power Distribution Equipment is widely used in construction, mining, infrastructure, events and emergency power scenarios, offering safe, reliable and flexible temporary power solutions for diverse working environments.

Featuring a modular design with integrated multi-circuit outputs, it supports both three-phase and single-phase loads, ideal for rapid deployment on small, medium and large-scale sites.

contact us Prev ProductNext Product

Standard Capacity

Country of Origin	China
Enclosure Protection Rating	IP44-IP66
Rated Frequency	50Hz/60Hz
Certification Standards	AS3012/AS61439.4
Mounting method	Wall
GPO Double	x5;10A
GPO Single	x1;15A
Main Switch	100A;3P
MCB	32A;3P;6KA
RCD	40A;4P;6KA
RCBO	x3;20A;1P;6kA
Lighting RCBO	20A;1P;6kA,
loop in/out of 25mm mains	165A, 4-hole active/neutral link set
Switched Socket Outlet	5Pin;32A;3P
Blank Plates	x2
Side Mount Enclosure:	Equipped with 100A external and upstream loop isolators, power terminals, and lighting terminals.

Product Features

Customisation Available:

Flexible configurations including additional GPOs, isolators, RCDs/RCBOs, lighting test points, emergency stop, phase indication lights, and more.
User-Friendly & Safe:

Plug-and-play design reduces the need for on-site electricians. Lockable isolators and IP66/IP67 rated outlets provide enhanced safety for personnel and equipment.
Compliant with Australian Standards:

Fully certified to AS/NZS 3000 (Clause 2.6.2.2.2), AS/NZS 3012, AS/NZS 61439.4 and AS/NZS 60529, ensuring safe, legal operation across Australian worksites.
