DSJ ELECTRICAL Delivers CSA-Compliant Four-Sided Outdoor Transformer Cabinet for Holden Colony, Canada

DSJ ELECTRICAL has successfully completed the design and delivery of a customized four-sided outdoor transformer cabinet for its Canadian customer Holden Colony, demonstrating strong capability in engineering customization, North American standards compliance, and short lead-time manufacturing.

The project was executed within a 40-day cycle, covering engineering design, manufacturing, assembly, factory testing, and certification labeling. All equipment was fully tested prior to shipment and labeled with CSA certification, ensuring compliance with Canadian electrical codes and smooth on-site acceptance.

DSJ ELECTRICAL has an established project track record in Alberta Province, including installations in Edmonton and Calgary, supporting a wide range of outdoor and cold-climate power distribution applications.

Engineering Requirements and Design Basis

The application required an outdoor transformer enclosure suitable for cold-climate and corrosive environments, with integrated accommodation for transformers and circuit breakers in a single compact structure. The design emphasis was placed on operational safety, installation flexibility, and long-term reliability.

Key engineering requirements included:

• Four-sided access for operation and maintenance
• Bottom cable entry for underground conduit systems
• Compliance with UL 891 and applicable CSA standards
• Use of UL-listed components
• Structural and material suitability for outdoor Canadian conditions

Based on these requirements, DSJ ELECTRICAL developed a project-specific enclosure and electrical configuration.

Standards Compliance and Component Selection

All internal electrical components used in the cabinet are UL-listed, including circuit breakers, busbars, insulation systems, wiring, and terminals. The assembly was designed to comply with UL 891 (Dead-Front Switchboards) and relevant CSA standards for outdoor power distribution equipment.

Prior to shipment, the cabinet underwent full factory testing in accordance with internal procedures aligned with North American requirements. Upon completion of testing and inspection, CSA certification labels were applied to ensure regulatory acceptance in Canada.

Four-Sided and Bottom-Access Cabinet Design

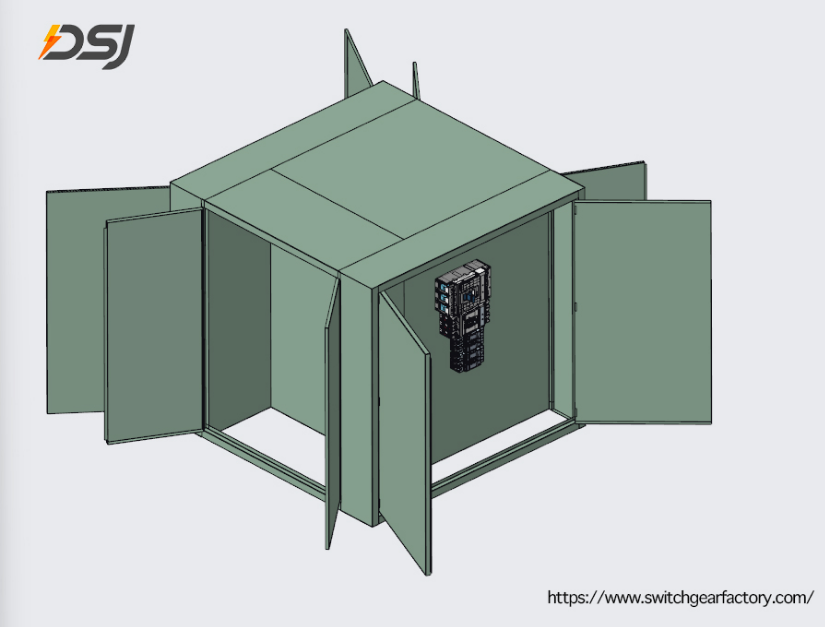

The enclosure features a four-sided door configuration, allowing access from all directions. This design provides flexibility in site orientation and improves accessibility for operation, inspection, and maintenance in outdoor environments.

A bottom-opening structure was incorporated to support bottom cable entry, enabling direct connection to underground conduits or basement-level electrical rooms. This configuration reduces installation complexity and improves cable management for field applications.

Integrated Transformer and Circuit Breaker Configuration

The cabinet integrates transformers and circuit breakers within a single square enclosure. Internal layout design focused on:

• Clear separation of functional sections
• Compliance with electrical clearance and creepage requirements
• Adequate ventilation and heat dissipation
• Logical arrangement for safe operation and maintenance

This integrated approach minimizes footprint while maintaining electrical safety and system reliability.

Enclosure Construction and Environmental Protection

To meet outdoor and cold-climate requirements, the enclosure was fabricated from stainless steel and finished with a high-performance protective coating. This construction provides enhanced resistance to corrosion, moisture, snow, and ice.

The enclosure design ensures mechanical strength and durability under extreme weather conditions commonly experienced in Alberta and other Canadian regions.

Cold Climate Design Considerations

Engineering considerations for cold-climate operation included:

• Material performance at low temperatures
• Thermal expansion and contraction control
• Insulation reliability in sub-zero environments
• Structural integrity under snow and wind loads

These measures support long-term electrical performance and operational safety in outdoor installations.

3D Engineering and Quality Control

DSJ ELECTRICAL applied 3D engineering design tools to develop and validate the cabinet layout. All critical aspects—including component arrangement, access clearances, and cable entry locations—were reviewed and approved prior to manufacturing.

Each cabinet was subjected to comprehensive factory inspection and testing, including wiring verification, electrical continuity checks, and functional testing of circuit breakers, before final approval for shipment.

Experience in Alberta, Canada

DSJ ELECTRICAL has successfully delivered multiple CSA-compliant outdoor power distribution projects in Alberta Province, including Edmonton and Calgary, demonstrating familiarity with local standards, environmental conditions, and engineering expectations.

Conclusion

The Holden Colony project highlights DSJ ELECTRICAL’s capability to deliver custom-engineered, CSA-compliant outdoor transformer cabinets within a short lead time. The combination of UL-listed components, robust enclosure design, and cold-climate engineering ensures reliable performance for Canadian outdoor power applications.

DSJ ELECTRICAL continues to support engineering-driven customers across Canada with compliant, durable, and efficiently delivered power distribution solutions.
