Advantages of UL 891 Draw-Out Switchboards in Low-Voltage Power Distribution

UL 891 draw-out switchboards are widely used in North America. They are common in industrial, commercial, and utility power systems. Compared with fixed-mounted designs, draw-out switchboards improve safety. They also simplify maintenance and reduce downtime.For critical power systems, this design is often preferred.

Enhanced Personnel Safety

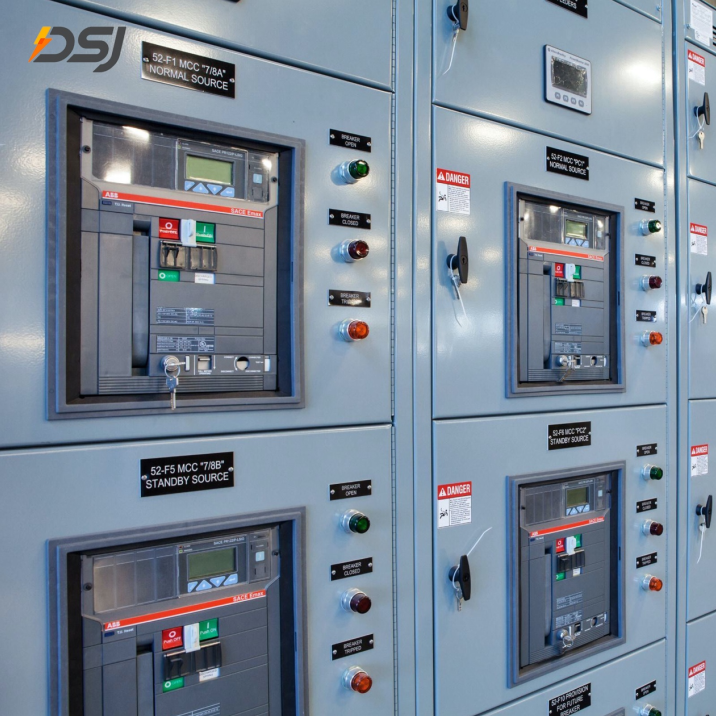

In a draw-out switchboard, circuit breakers are mounted in withdrawable cradles. Each breaker has three positions: Connected, Test, and Disconnected. These positions allow inspection and replacement without contact with live busbars. Technicians can clearly isolate the circuit before work begins. Mechanical interlocks prevent incorrect operation. Position indicators show the breaker status at all times. These features meet the intent of UL 891.

They also align with common NFPA 70 (NEC) practices. DSJ Electrical focuses exclusively on UL 891 switchboards. Its draw-out designs reflect real field maintenance needs. Safe access and clear isolation are built into the structure.

Reduced Downtime During Maintenance

A draw-out breaker can be removed quickly. A spare unit can be installed without disconnecting the main bus. Only the affected feeder is taken out of service. Other circuits remain energized. This approach reduces outage time. It is critical for facilities that require continuous operation.

Improved System Reliability

Each breaker can be isolated on its own. Maintenance does not affect the rest of the switchboard. This lowers the risk of secondary faults. It also supports regular inspection and testing. Draw-out construction is modular. Feeders can be upgraded or rearranged in the future. DSJ Electrical controls mechanical tolerances and bus alignment across its UL 891 line. This supports stable performance over the equipment’s service life.

Lower Lifecycle Cost

Draw-out switchboards usually have a higher initial cost. However, long-term costs are often lower. Shorter outages reduce operational losses. Safer maintenance reduces repair time and risk. For critical power systems, lifecycle cost matters more than purchase price.

Typical Applications

UL 891 draw-out switchboards are commonly used in:

• Data centers and mission-critical facilities
• Hospitals and healthcare systems
• Generator paralleling and output switchboards
• Industrial plants with continuous processes
• Utility and infrastructure projects

Conclusion

UL 891 draw-out switchboards improve safety and maintainability. They also support reliable long-term operation. DSJ Electrical is a dedicated UL 891 switchboard manufacturer. Its draw-out designs follow North American engineering practices. They are built for safe operation and dependable performance.
