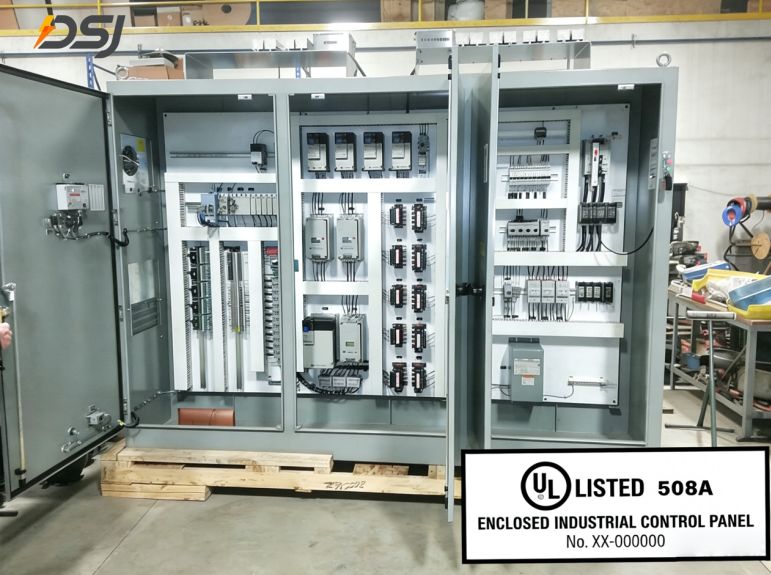

UL 508A Wire Color Requirements and Design Considerations for Industrial Control Panels

In industrial control panel projects for the North American market, wire color selection is not only about visual clarity. It directly affects UL 508A compliance, electrical safety, and maintenance efficiency. Improper wire color usage is one of the most common nonconformities found during UL evaluations and third-party inspections. This article summarizes general wire color principles and key design considerations based on UL 508A and related North American electrical practices.

Basic Principles for Wire Color Design

UL 508A does not mandate a single color scheme for all conductors. However, it defines clear design principles that must be followed:

• Wires with different functions must be clearly and easily identifiable
• Wire colors should match their electrical function
• Wire color usage must be consistent within the same control panel
• Wire colors must match electrical drawings, nameplates, and technical documentation

A well-defined color scheme reduces the risk of wiring errors and improves commissioning and maintenance efficiency.

Mandatory and Restricted Wire Colors

Protective Earth (PE)
Permitted colors: Green or green/yellow
Restriction: These colors are permitted for protective earth conductors only and must not be used for any live circuit. This is one of the strictest color restrictions in UL 508A.

Neutral Conductor (N)
Common colors: White or gray
Important note: If a white or gray wire is used for a function other than neutral, it must be permanently re-identified at both ends.

External Power or Continuously Energized Circuits
Recommended color: Orange
Typical applications include:

• Circuits that remain energized when the enclosure door is open
• External power supply circuits
• Energy storage or auxiliary power systems

This practice is consistent with UL 508A and NFPA 79 engineering conventions.

Common Nonconformities and Design Risks

During UL evaluations and field inspections, the following issues are frequently observed:

• Protective earth conductors not using green or green/yellow
• White wires used as control conductors without re-identification
• AC and DC circuits mixed without clear color distinction
• Inconsistent wire colors for the same function across different panels
• Actual wiring colors not matching electrical drawings

Addressing these risks during the design stage helps reduce rework and inspection delays.

Engineering Implementation Recommendations

• Establish a company-level wire color standard and include it in design and assembly procedures
• Clearly identify wire functions and voltage levels on drawings and nameplates
• Confirm technical details with UL engineers or third-party inspectors early in the project
• Maintain consistency between drawings, assembly, and final inspection

Conclusion

Proper wire color design is a key part of the UL 508A safety and compliance framework for industrial control panels. A consistent and well-documented color scheme supports UL approval, improves serviceability, and enhances overall engineering quality.
