DSJ ELECTRICAL Advances Power Grid Stability with Advanced Tapped Reactor Technology

Innovative Arc Suppression Solutions for Medium Voltage Networks

SHANGHAI, CHINA — As power grids worldwide face increasing complexity from renewable integration, aging infrastructure, and demanding environmental conditions, the role of reactive power compensation and fault current management has never been more critical. DSJ ELECTRICAL, a emerging manufacturer in the field of power transmission and distribution equipment, is addressing these challenges with its comprehensive line of tapped arc suppression reactors designed specifically for medium voltage networks.

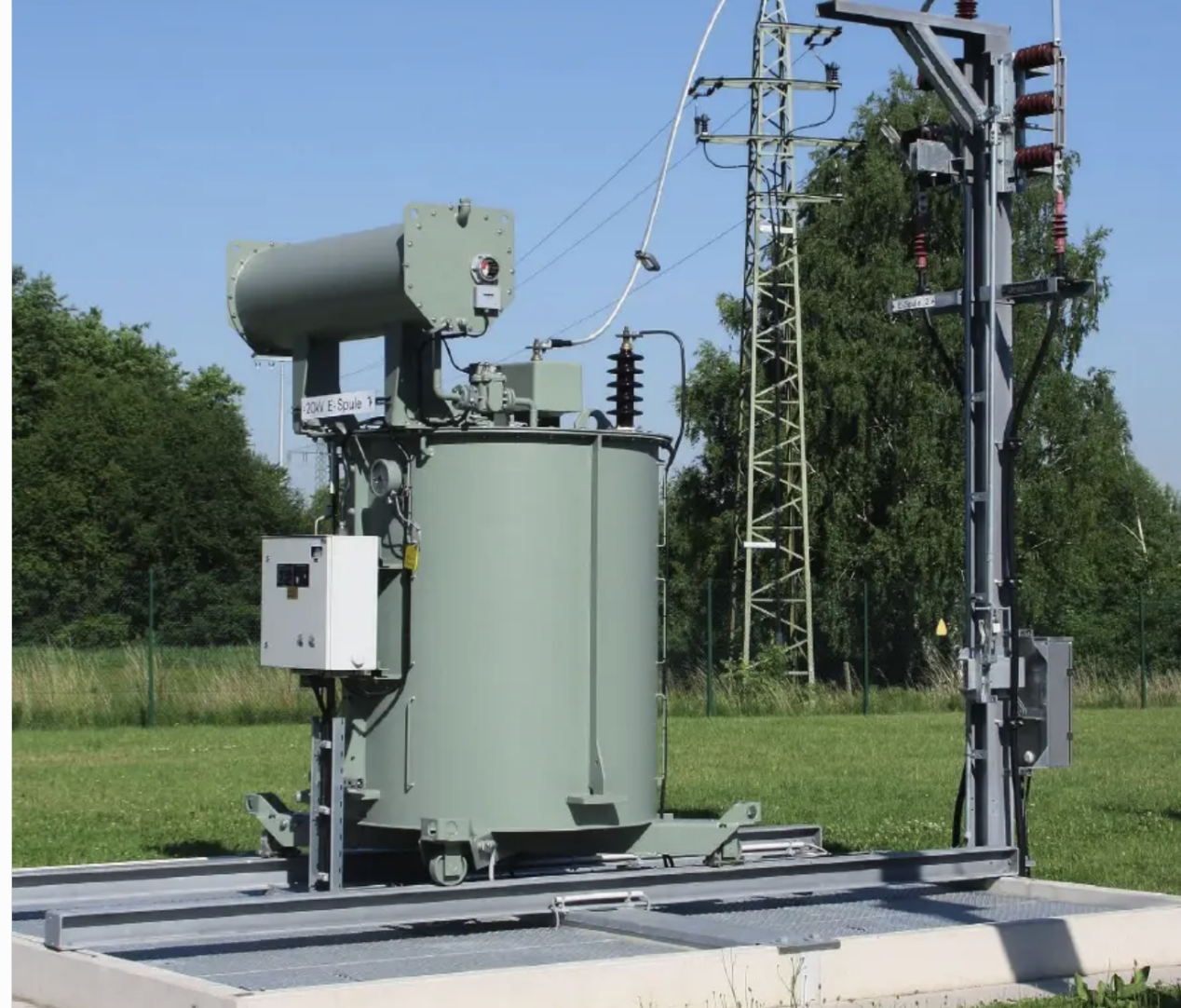

The company's 10 kV Tapped Arc Suppression Coil with Automatic Tracking Compensation System represents a significant advancement in neutral grounding technology, offering utilities and industrial customers a proven solution for managing single-phase ground faults—the most common type of fault in power distribution systems.

The Science Behind Tapped Reactor Technology

Unlike fixed-value reactors or continuously variable designs such as plunger-type reactors, tapped reactors utilize a fundamentally different approach to inductance control. At the heart of DSJ ELECTRICAL's design is a gapped iron core constructed from high-grade grain-oriented silicon steel laminations. The core features carefully engineered fixed air gaps that prevent magnetic saturation while maintaining stable inductance characteristics.
"The key distinction lies in how we achieve variability," explains Chen Wei, Senior Engineer at DSJ ELECTRICAL. "While plunger-type reactors physically move a core plunger to alter the air gap—a process that can take several minutes—our tapped reactor design employs a proven on-load tap changer that selects different winding connections in milliseconds."
This fundamental difference has profound implications for grid performance. When a single-phase ground fault occurs, every millisecond counts. The ability to rapidly adjust compensation directly impacts the suppression of arcing ground faults and the prevention of overvoltages that can damage expensive primary equipment such as power transformers and switchgear.

Technical Excellence Under Extreme Conditions

DSJ ELECTRICAL's tapped reactors are engineered to meet the most demanding operational environments, a capability that has particular relevance for projects in regions with extreme climates. The company's UKhL1 climate design rating ensures reliable operation across a remarkable temperature range from -60°C to +40°C, making these units suitable for deployment from the frozen expanses of Siberia to the heat of desert installations.
The reactors comply with stringent international standards including IEC 60076-6 and, critically for projects in the Russian Federation, relevant GOST standards—a requirement that has become increasingly important as infrastructure modernization accelerates across the former Soviet states.

Key Technical Specifications

DSJ ELECTRICAL's 10 kV tapped arc suppression reactors offer the following performance characteristics:
Voltage Rating: 10.5/√3 kV (maximum operating voltage 12/√3 kV)
Frequency: 50 Hz
Power Rating at Rated Voltage: 200 kVA
Current Adjustment Range: 20% to 100% (in discrete steps via tap changer)
Total Losses: ≤ 2.5% of rated power at maximum current
Compensation Current Range: 5 A to 33 A
Continuous Operation Capability: 6 hours at rated voltage and maximum current
Insulation Level: Lightning impulse withstand voltage 60 kV, power frequency withstand 35 kV
Seismic Resistance: MSK-64 Grade 9
Sound Power Level: ≤ 100 dBA
Design Life: Minimum 30 years
Mean Time Between Failures (MTBF): ≥ 25,000 hours
The Tapped Advantage: Precision, Speed, and Reliability

Superior Response Time

For arc suppression applications, response speed directly correlates with system protection effectiveness. DSJ ELECTRICAL's tapped reactor design achieves full compensation within seconds of fault detection, dramatically outperforming plunger-type alternatives that may require several minutes to complete a full adjustment cycle.
This rapid response is particularly valuable in networks with intermittent faults or those prone to evolving into multi-phase faults. By quickly neutralizing the capacitive current at the fault point, the tapped reactor creates conditions favorable for arc self-extinction, often preventing permanent fault development and unplanned outages.

Proven Mechanical Reliability

While plunger-type reactors eliminate electrical contacts, they introduce mechanical complexity in the form of moving cores, ball screws, and bearings—components that face significant challenges in extreme cold environments. Lubricants thicken, materials contract at different rates, and precision mechanisms can bind or fail.
DSJ ELECTRICAL's tapped reactor design takes a different approach. The on-load tap changer, while containing electrical contacts, is fully immersed in insulating oil, protected from environmental contaminants, and engineered for tens of thousands of operations. This design has been refined over decades of service worldwide and represents one of the most reliable switching technologies in the power industry.

True Discrete Accuracy

Tapped reactors achieve compensation accuracy through carefully engineered tap spacing. DSJ ELECTRICAL's designs typically feature 9 to 18 taps, enabling residual current reduction to less than 5 amperes—and in many configurations, below 1 ampere. This level of precision meets or exceeds the requirements of even the most demanding grid codes.
The discrete nature of tapped adjustment also provides deterministic performance. Operators know exactly what compensation current corresponds to each tap position, facilitating system planning and coordination with other protective devices.
DSJ ELECTRICAL brings together deep engineering expertise, modern manufacturing capabilities, and a commitment to quality that meets the expectations of the most demanding customers.

Key differentiators include:
GOST Compliance Capability: Understanding the regulatory environment in the Russian Federation and neighboring countries, DSJ ELECTRICAL maintains technical documentation packages designed to facilitate GOST certification. All units can be supplied with Russian-language documentation, including technical passports, operation manuals, and test reports.
Custom Engineering: While standard designs cover most applications, DSJ ELECTRICAL's engineering team works closely with customers to address specific requirements—whether unusual voltage ratings, special control interfaces, or unique environmental challenges.
