UL 1561 vs. UL 1562: Understanding the Standards for Dry-Type Transformers

Introduction:
When selecting a dry-type transformer for your electrical project, compliance with UL (Underwriters Laboratories) standards is crucial for ensuring safety, reliability, and performance. However, many buyers are often confused by the differences between UL 1561 and UL 1562. While both cover dry-type transformers, they apply to different voltage classes and environments. In this article, we will break down their similarities, differences, and ideal application scenarios.

1. What is UL 1561? (Low Voltage focus)

UL 1561 is the standard for Dry-Type General Purpose and Power Transformers with a primary voltage rating of 600V or less.
- Scope: It covers single-phase and three-phase transformers typically used in commercial and light industrial settings.
- Key Feature: These units are designed for step-down or isolation purposes within a building’s low-voltage distribution system.

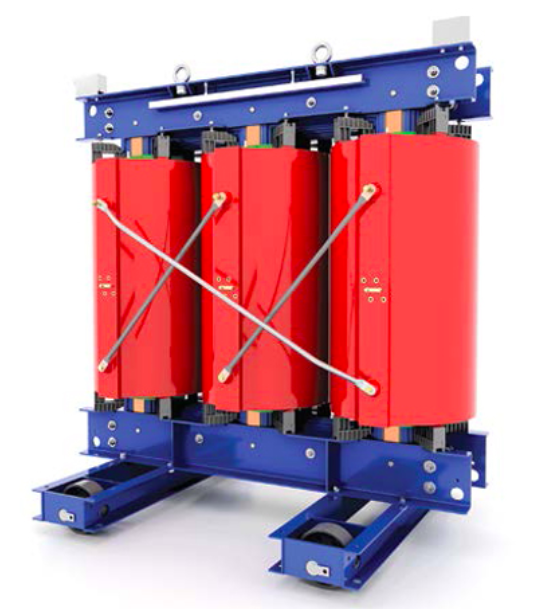

2. What is UL 1562? (Medium Voltage focus)

UL 1562 is the standard for Transformers, Distribution, Dry-Type – Over 600 Volts.
- Scope: It applies to medium-voltage transformers, typically ranging from 601V up to 35kV.
- Key Feature: These are larger, more robust units designed to handle higher electrical stresses and are often used at the point where utility power enters a facility.

3. Key Differences at a Glance

- Voltage Range: This is the primary distinction. UL 1561 is for LV (Low Voltage), while UL 1562 is for MV (Medium Voltage).
- Insulation Requirements: UL 1562 requires significantly higher Basic Impulse Level (BIL) ratings and more rigorous dielectric testing due to the higher operating voltages.
- Enclosure and Clearance: UL 1562 units have stricter requirements for air clearances and ventilation to prevent arcing and manage higher heat dissipation.

4. Which one do you need?

- Choose UL 1561 if: You are installing transformers inside a building to power HVAC systems, lighting, or office equipment (e.g., 480V to 208Y/120V).
- Choose UL 1562 if: You are dealing with industrial power distribution, substations, or large-scale plants where the incoming power is at a medium voltage (e.g., 4160V, 13.8kV).

Conclusion:

At DSJ, we specialize in manufacturing high-quality dry-type transformers that meet global safety standards. Whether your project requires a UL 1561 compliant low-voltage unit or a heavy-duty UL 1562 medium-voltage transformer, our team is here to provide the perfect solution for your grid.
