How to Determine Breaker Size: The Complete Sizing Guide
Admin 2026-06-08Content
- 1 Why Breaker Size Matters More Than Most People Think
- 2 The Core Formula: How to Determine Breaker Size Step by Step
- 3 Wire Gauge and Breaker Size: The Essential Pairing Table
- 4 How to Determine Breaker Size for Common Household Circuits
- 5 Motor Loads: Why They Require Special Breaker Sizing Rules
- 6 Double-Pole vs Single-Pole Circuit Breakers: Choosing the Right Type
- 7 How Voltage Affects Circuit Breaker Sizing Calculations
- 8 Subpanel Breaker Sizing: Feeding Detached Structures and Secondary Panels
- 9 Common Mistakes When Sizing a Circuit Breaker
- 10 How to Size the Main Circuit Breaker for a Whole-House Panel
- 11 Breaker Sizing Questions Answered Directly
Determining the right circuit breaker size comes down to one core formula: multiply the circuit load in amps by 1.25 to get the minimum breaker rating. This 125% rule accounts for continuous loads and prevents nuisance tripping. For a 20-amp load, you need at least a 25-amp breaker — and since breakers come in standard sizes, you round up to a 30-amp unit. That single principle governs most residential and light commercial breaker sizing decisions.
Why Breaker Size Matters More Than Most People Think
An undersized circuit breaker trips constantly, shuts down equipment at the worst moments, and creates real operational headaches. An oversized one is far more dangerous — it allows wiring to overheat without ever tripping, which is a leading cause of electrical fires. The circuit breaker is the last line of defense between a fault condition and a burned-out wall or worse.
Every wire gauge has a current-carrying capacity (ampacity). The breaker must be sized to protect that wire, not just to match the load. A 14 AWG wire is rated for 15 amps. A 20-amp breaker on that wire leaves it unprotected for 5 amps of overcurrent — enough to cause insulation damage over time. Getting this relationship right is the entire point of breaker sizing.
The breaker protects the wire, not the device. Always match the breaker to the wire's ampacity first, then verify the load fits within that capacity.
The Core Formula: How to Determine Breaker Size Step by Step
The calculation process follows a clear sequence. Work through each step and you will arrive at the correct breaker size for virtually any standard circuit.
Calculate Total Load Current
Add up the amperage draw of every device on the circuit. For resistive loads like heaters, use the nameplate wattage divided by voltage: Amps = Watts ÷ Volts. A 2,400-watt baseboard heater on 240V draws exactly 10 amps.
Apply the 125% Continuous Load Factor
Any load expected to run for 3 hours or more is a continuous load. Multiply the total continuous load amps by 1.25. If your circuit has 16 amps of continuous load, the breaker must be rated for at least 20 amps.
Check Wire Ampacity
The breaker size cannot exceed the wire's ampacity rating. Confirm the wire gauge supports the breaker you've calculated. If the wire can't carry the load, upsize the wire — never just upsize the breaker.
Round Up to the Next Standard Size
Breakers come in standard increments: 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100 amps and beyond. Round your calculated value up to the next available size. Never round down.
Wire Gauge and Breaker Size: The Essential Pairing Table
Every wire gauge has a maximum allowable breaker size based on its ampacity. The table below covers the most common AWG sizes used in residential and light commercial work. These values apply to copper conductors in typical conditions — aluminum wire requires larger gauges for the same ampacity.
| Wire Gauge (AWG) | Copper Ampacity (60°C) | Maximum Breaker Size | Typical Application |
|---|---|---|---|
| 14 AWG | 15A | 15A | Lighting, bedroom outlets |
| 12 AWG | 20A | 20A | Kitchen circuits, bathrooms |
| 10 AWG | 30A | 30A | Dryers, water heaters, A/C |
| 8 AWG | 40A | 40A | Electric ranges, large A/C |
| 6 AWG | 55A | 60A | Subpanels, large equipment |
| 4 AWG | 70A | 70A | Service entrances, subpanels |
| 2 AWG | 95A | 100A | Main panels, large subpanels |
| 1/0 AWG | 125A | 125A | Service entrances |
| 3/0 AWG | 165A | 175A | 200A service (with derating) |
Note that aluminum wiring requires a gauge two steps larger to carry the same current safely. A 10 AWG aluminum conductor is rated for only 30 amps under some conditions, where 10 AWG copper handles 30 amps comfortably. Always verify the conductor material before selecting a breaker.
How to Determine Breaker Size for Common Household Circuits
Different areas of a home have distinct electrical demands. Here is how to approach sizing the circuit breaker for each major circuit type, with specific load figures and typical breaker ratings.
Kitchens require at least two dedicated 20-amp small appliance circuits for countertop receptacles, separate from lighting. A refrigerator typically draws 3–6 amps running but up to 15 amps on startup. A microwave runs at 12–15 amps. The dishwasher needs its own dedicated 20-amp circuit. An electric range demands a 50-amp double-pole breaker on 8 AWG wire minimum, or 40-amp on a smaller unit.
Central air conditioning units specify their minimum circuit ampacity and maximum overcurrent protection on the nameplate. A 3-ton central A/C system commonly requires a 30–40 amp double-pole breaker on 10 AWG or 8 AWG wire. Always read the equipment label — some units permit a breaker one size larger than the minimum circuit ampacity to handle motor startup surge.
A standard residential electric dryer draws 24–30 amps during full heat operation. The required circuit is a 30-amp double-pole breaker on 10 AWG three-wire cable (two hots, one neutral, one ground). Never use a 20-amp breaker on a dryer circuit — it will trip repeatedly and may not provide adequate protection during a fault.
A Level 2 home EV charger running at 48 amps requires a 60-amp dedicated circuit with 6 AWG wire (48A x 1.25 = 60A). A 32-amp charger needs a 40-amp breaker on 8 AWG wire. This is a continuous load by definition, so the 125% rule always applies.
Electric water heaters are continuous loads. A 4,500-watt element on 240V draws 18.75 amps. Applying the 125% rule: 18.75 x 1.25 = 23.4 amps. Round up to the next standard size — a 30-amp double-pole breaker on 10 AWG wire is the standard answer for most residential water heaters.
A dedicated workshop circuit for stationary tools typically requires a 20-amp or 30-amp breaker. A table saw may draw 12–15 amps under load. If you run multiple tools from the same circuit, size for the largest tool's startup surge plus a margin. Many electricians run a 30-amp circuit on 10 AWG to a workshop subpanel.
Motor Loads: Why They Require Special Breaker Sizing Rules
Motors behave differently from resistive loads. At startup, an induction motor draws six to eight times its full-load running current for a fraction of a second. If the circuit breaker trips on every startup, the instinct is to upsize the breaker — but that may be the wrong move if the wire is already at its limit.
Standard sizing rules for motor branch circuits allow the circuit breaker to be larger than the wire's ampacity in some cases, specifically to handle the inrush. For non-time-delay fuses, the maximum is 300% of the motor's full-load current. For inverse-time circuit breakers (the standard type in most panels), the maximum is 250% of the motor's full-load current.
Example: A 2 HP 240V single-phase motor has a full-load current of approximately 12 amps. The maximum inverse-time circuit breaker size is 12 x 2.5 = 30 amps. If the motor starts and runs reliably on a 20-amp breaker, that is perfectly acceptable — 30 amps is just the upper limit, not the required size.
What Causes Nuisance Tripping on Motor Circuits
- Breaker sized exactly at running current with no margin for startup
- Standard breaker instead of motor-rated or time-delay type
- Worn motor with high starting current due to bearing drag
- Long wire runs creating additional voltage drop during startup
- Undersized supply voltage increasing current draw
When to Use a Time-Delay Circuit Breaker
Time-delay circuit breakers (also called slow-blow types) tolerate brief overloads without tripping. They are the right choice for motor circuits, refrigerators, compressors, and any load with high inrush. The tripping curve shifts to allow a few seconds of overcurrent before the breaker opens, covering motor startup surges while still protecting against sustained faults.

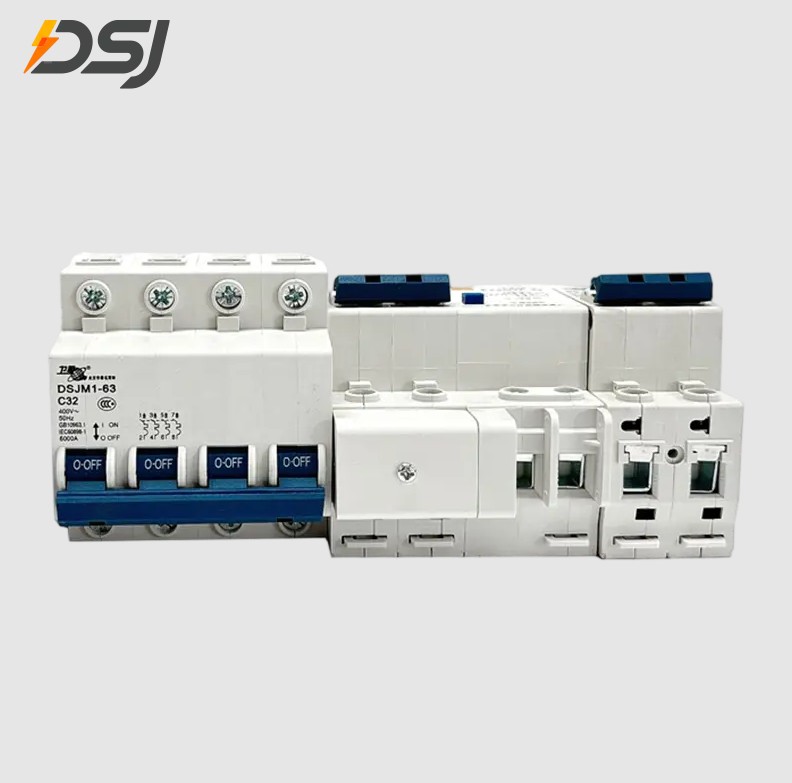

Double-Pole vs Single-Pole Circuit Breakers: Choosing the Right Type

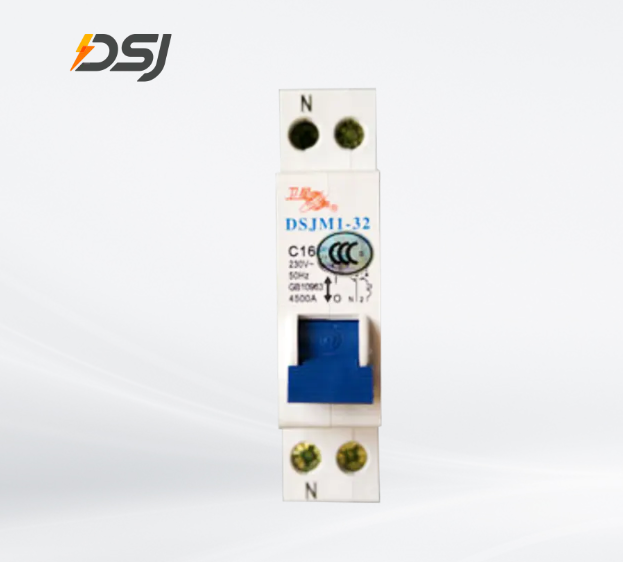

Most household circuits use single-pole breakers that occupy one slot in the panel and supply 120V between one hot leg and neutral. Double-pole breakers occupy two adjacent slots, connect to both hot legs of the panel's 240V supply, and are required for any 240V appliance or any circuit where the voltage between the two conductors is 240V.
| Breaker Type | Voltage | Panel Slots Used | Common Applications |
|---|---|---|---|
| Single-pole | 120V | 1 | Lighting, outlets, small appliances |
| Double-pole | 240V | 2 | Dryers, ranges, A/C, water heaters, EV chargers |
| Tandem / Twin | 120V (each) | 1 (two circuits) | Expanding capacity in a full panel |
| GFCI Breaker | 120V or 240V | 1 or 2 | Bathrooms, kitchens, outdoors, garages |
| AFCI Breaker | 120V | 1 | Bedrooms, living areas, arc fault protection |
A double-pole breaker rated at 30 amps provides 30 amps on each leg, not 30 amps shared between two legs. Both poles trip simultaneously if either leg overloads or if the other pole has an internal fault — which is why double-pole protection is mandatory for 240V circuits rather than using two separate single-pole breakers.
How Voltage Affects Circuit Breaker Sizing Calculations
The same wattage load requires very different current depending on the voltage. This is not abstract — it directly changes which wire gauge and which breaker you need.
Consider a 4,800-watt load:
- At 120V: 4,800 ÷ 120 = 40 amps — requires 8 AWG wire and a 50-amp breaker after applying 125%
- At 240V: 4,800 ÷ 240 = 20 amps — requires 12 AWG wire and a 25-amp breaker (round up to 30A)
This is why large heating and cooking appliances are always designed for 240V. Running the same wattage at higher voltage cuts the current in half, allowing smaller, cheaper wiring throughout. The circuit breaker on the 240V side is correspondingly smaller as well.
For three-phase commercial circuits, the calculation includes a factor of 1.732 (the square root of 3): Amps = Watts ÷ (Volts x 1.732 x Power Factor). A 10 kW three-phase load at 208V with 0.85 power factor draws 10,000 ÷ (208 x 1.732 x 0.85) = approximately 32.7 amps per phase — calling for a 40-amp three-pole breaker.
Subpanel Breaker Sizing: Feeding Detached Structures and Secondary Panels
When running power to a detached garage, workshop, or accessory dwelling, you install a subpanel fed from the main panel. The feeder circuit breaker in the main panel must be sized for the total load of the subpanel — not the rating of the subpanel itself.
Start by calculating the anticipated loads in the subpanel. Add up the largest continuous loads and apply the 125% rule. Then size the feeder breaker to cover that total. If your workshop will have a 20-amp circuit for tools, a 20-amp circuit for outlets, and a 30-amp circuit for a compressor, your total continuous load estimate might be 50–60 amps. A 60-amp or 70-amp double-pole feeder breaker with matching wire gauge feeds the subpanel.
Feeder Wire Sizing for Subpanels
Long wire runs to detached structures introduce voltage drop, which reduces equipment performance and can cause motor damage. For runs over 100 feet, increase the wire gauge one size beyond what the breaker rating strictly requires. A 60-amp feeder running 150 feet to a garage should use 4 AWG instead of 6 AWG to keep voltage drop under 3%.
- 60-amp subpanel feeder under 100 ft: 6 AWG copper or 4 AWG aluminum
- 60-amp subpanel feeder over 100 ft: 4 AWG copper or 2 AWG aluminum
- 100-amp subpanel feeder under 100 ft: 4 AWG copper or 2 AWG aluminum
- 100-amp subpanel feeder over 150 ft: 2 AWG copper or 1/0 AWG aluminum
Common Mistakes When Sizing a Circuit Breaker
Most wiring problems that surface later — repeated tripping, overheated wires, equipment damage — trace back to errors made at the breaker sizing stage. These are the most frequent mistakes to avoid.
Sizing the Breaker to the Load Without Checking the Wire
If someone installs a 30-amp breaker on an existing circuit that still has 14 AWG wire, that wire has no overcurrent protection for the top 15 amps. The wire will overheat long before the breaker trips. Always confirm the wire gauge matches the breaker.
Skipping the Continuous Load Multiplier
Calculating a circuit at 16 amps and installing a 15-amp breaker seems logical — until the load runs for 3 hours and the breaker trips from thermal accumulation. The 1.25 multiplier is not optional for continuous loads. It protects the breaker itself from overheating.
Using a Residential Breaker in a Commercial Panel
Commercial-grade circuit breakers have higher interrupting ratings — the maximum fault current they can safely break without damage. A residential 10,000 AIC breaker may be inadequate in a location where the available fault current exceeds that rating. Check the available short-circuit current at the panel location before specifying breakers.
Ignoring Ambient Temperature Derating
Wire ampacity ratings assume an ambient temperature of 30°C (86°F). In an attic that reaches 50°C in summer, the wire's effective ampacity drops by 20–25%. The same 12 AWG wire rated for 20 amps at standard temperature should only carry 15–16 amps in a hot attic. If the circuit already runs near its rated limit, this derating can cause nuisance tripping or wire damage.
Oversizing to Stop Tripping Instead of Finding the Root Cause
When a circuit breaker trips repeatedly, the correct response is to find out why — not to install a larger breaker. Repeated tripping usually means the circuit is overloaded (remove some loads), the breaker is worn (replace it with the same size), or there is an actual fault in the wiring. A larger breaker masks the problem while allowing more damage to accumulate.
How to Size the Main Circuit Breaker for a Whole-House Panel
The main circuit breaker protects the entire service entrance conductors and sets the maximum total current the home can draw from the utility. Standard residential sizes are 100A, 150A, 200A, and 400A. Choosing the right size requires calculating the total demand load of the home, not the sum of every breaker in the panel.
Total connected load and total demand load are different things. A home with twenty 20-amp circuits does not draw 400 amps — because not every circuit operates at full capacity simultaneously. Load calculations use demand factors to estimate realistic simultaneous use.
General Load Calculation Method for Residential Panels
- Calculate general lighting and receptacle load: 3 VA per square foot of living area
- Add 1,500 VA for each small appliance circuit (minimum two in kitchen)
- Add 1,500 VA for the laundry circuit
- Apply demand factor: 100% of first 3,000 VA, 35% of the remainder up to 120,000 VA
- Add all fixed appliance loads at 100% (water heater, dryer, range, dishwasher, A/C)
- Divide total VA by service voltage (typically 240V) to get the minimum service amps
- Round up to the next standard main breaker size
A typical 2,000 square foot home with standard appliances usually calculates to 90–130 amps of demand load, which is why 200-amp service is standard for new construction — it provides comfortable headroom for future loads like EV chargers and heat pumps without requiring a service upgrade.
Breaker Sizing Questions Answered Directly
Can I use a 20-amp breaker on 14 AWG wire to get more capacity?
No. The wire determines the maximum breaker size, not the other way around. 14 AWG copper wire is rated for 15 amps, so the largest circuit breaker that protects it is 15 amps. Installing a 20-amp breaker on 14 AWG wire leaves that wire unprotected for 5 amps above its rating.
How many outlets can be on a 20-amp circuit?
A general rule of thumb is 8–10 outlets per 20-amp circuit, assuming a 1.5 amp load per outlet. However, the actual limit comes from the total load. If you are installing circuits in a dedicated office with many computers and monitors, derate accordingly and use fewer outlets per circuit.
What size breaker for a 1,500-watt space heater?
A 1,500-watt heater at 120V draws 12.5 amps. As a continuous load: 12.5 x 1.25 = 15.6 amps. Round up to the next standard size — a 20-amp dedicated circuit. Running a space heater on a shared 15-amp circuit risks nuisance tripping or overloading if anything else is active on that circuit.
Is a 15-amp or 20-amp circuit better for a bathroom?
A 20-amp circuit is recommended. Hair dryers commonly draw 12–15 amps, and electric shavers or curling irons add to the load. A 15-amp circuit will trip with a hair dryer running on high. Modern bathroom GFCI breaker circuits are typically 20 amps on 12 AWG wire.
What happens if a circuit breaker is too big for the wire?
The wire overheats under overload conditions without the breaker tripping to stop it. Over time, this degrades wire insulation and can cause a fire at connection points or in wall cavities. An oversized circuit breaker is significantly more dangerous than one that is slightly too small.
