Low-Voltage Switchgear

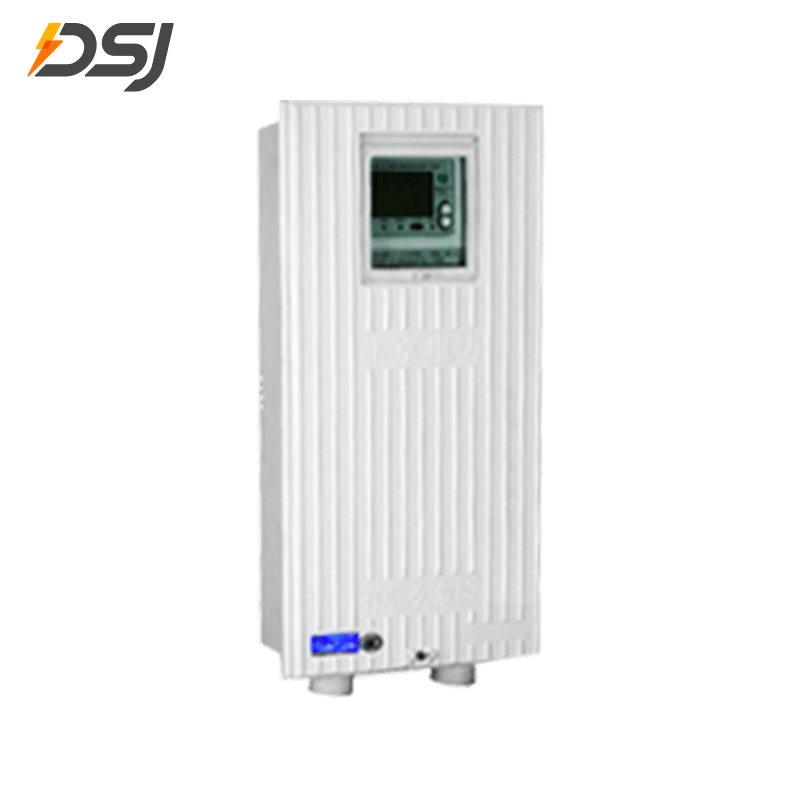

CE Certified Industrial/Residential Smart Meter Box

With a rated voltage of AC220V and a rated current of 10A to 80A, the smart meter box is the ideal solution for industrial or residential prepaid metering applications, offering long-term durability, reliability, and safe operation in various residential settings.
The metering box is made from SMC (fiberglass unsaturated polyester composite material), molded at high temperatures to ensure exceptional strength, heat resistance, and durability.
It provides excellent resistance to aging, corrosion, and fire with a V0 fire rating. The material is also insulation-resistant, ensuring a reliable, long-lasting product.
With a service life of up to 30 years, this box is built to withstand various environmental conditions.

contact us Prev ProductNext Product

Standard Capacity

Origin	China
CE Certificate	M.2025.206.C115436
CQC Certificate No.	CQC2008010301288121
Enclosure Protection Rating	IP43-IP66
Material Group	IIIa
Insulation Material Name and Thermal Rating	SMC/E Class
Electric Shock Protection Category	Class I
Rated Frequency	50Hz、60Hz
Rated Operating Voltage	220V、380V
Rated Insulation Voltage	500V
Rated Impulse Withstand Voltage	4kV
Rated Current	10A - 80A
Rated Peak Withstand Current of Main Busbar	6kA
Number of Outgoing Circuits	2, 3, 4
Rated Current of Outgoing Circuits	40A/60A/80A
Rated Short-Circuit Withstand Current of Outgoing Circuits	4.5kA
Rated Current of Horizontal Busbar	100A - 80A

Product Features

Durability and Long Service Life:

Built with high-performance materials to withstand extreme weather conditions, ensuring longevity and performance.
Easy Installation and Compliance:

With a flexible design and compliance with international standards, the meter box is easy to install and guarantees regulatory compliance in different regions.
Safety and Reliability:

Designed with high insulation and fire-resistant properties, ensuring safe and reliable operation in residential applications.
