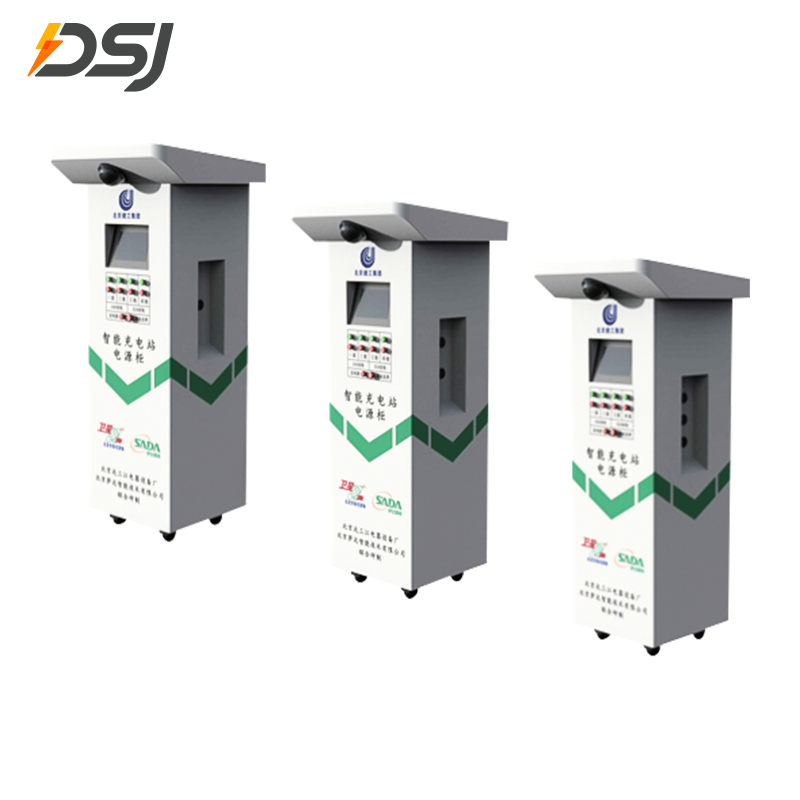

Construction Site Smart Charging Station

The smart charging station is specifically designed for construction sites, offering a centralized charging solution for electric tools and machinery. Equipped with smart meters for monitoring and control, it optimizes energy usage and enhances safety in a busy work environment.

contact us Prev ProductNext Product

Standard Capacity

Material	Metal
Origin	China
CQC Certificate No.	CQ02010010301448623
Electric Shock Protection Category	Class I
Enclosure Protection Rating	IP43-IP66
Second-layer Door Protection Rating	IP21
Rated Frequency	50Hz、60Hz
Pollution Degree	3
Insulation Material Name and Thermal Rating	DMC, Thermal Rating F
Rated Voltage	380V
Rated Insulation Voltage	660V
Rated Impulse Withstand Voltage	6kV
Rated Current of Main Busbar	100A
Rated Short-Time Withstand Current of Main Busbar	3kA
Rated Peak Withstand Current of Main Busbar	4.5kA
Rated Current of Main Switch	2circuits=40A; 4circuits=63A;6circuits= 100A
Rated Limiting Short-Circuit Breaking Capacity of Main Switch	3kA
Rated Operating Short-Circuit Breaking Capacity of Main Switch	3kA
Number of Outgoing Circuits	2 circuits; 4 circuits; 6 circuits

Product Features

Efficient Power Management:

The Smart Charging Station allows for the intelligent distribution of electricity for various devices, ensuring that multiple tools, machinery, and equipment are charged efficiently, reducing downtime and maximizing productivity.
Remote Monitoring and Control:

With smart connectivity, the charging station can be monitored and controlled remotely, enabling site managers to track charging progress, energy usage, and system status in real-time, ensuring operational efficiency.
Energy-Saving Features:

Integrated with energy-saving technology, the charging station optimizes charging cycles to reduce energy consumption, helping construction sites lower overall energy costs.
