Transformer

CE/UL Certified Dry Transformer Electrical Transformer Power Transformer

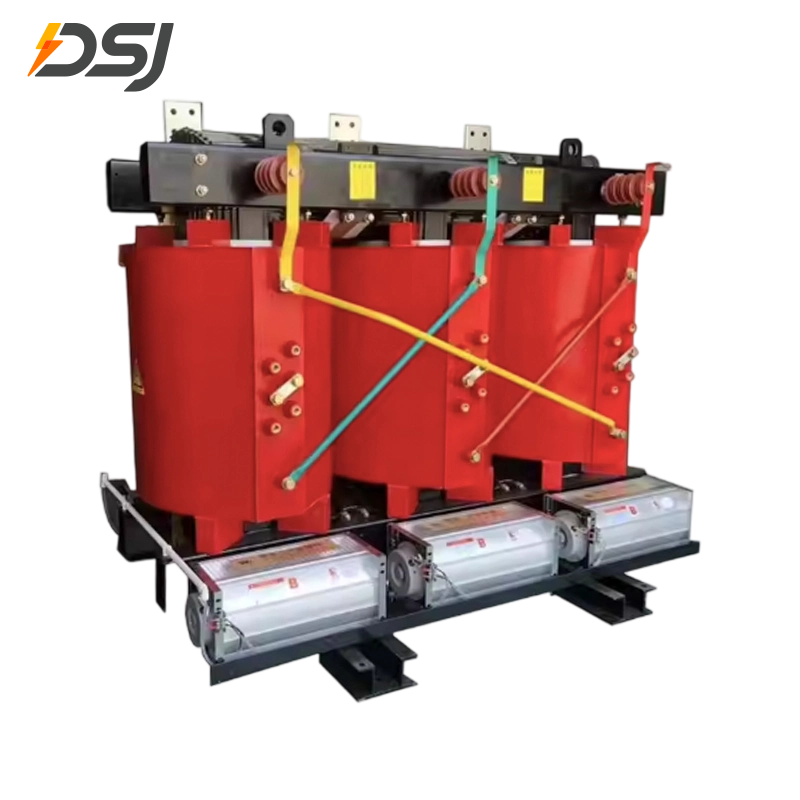

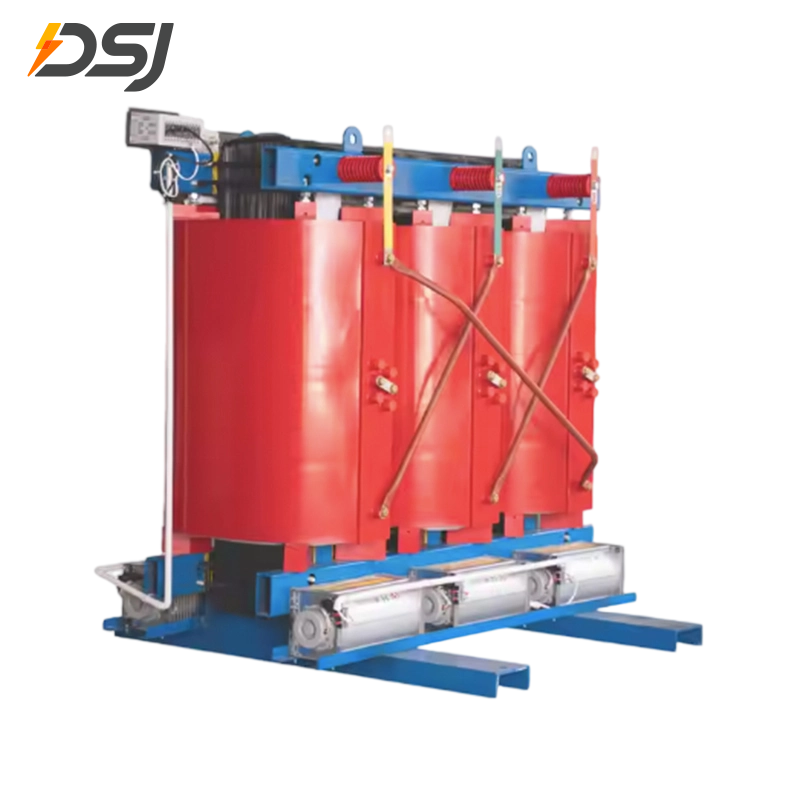

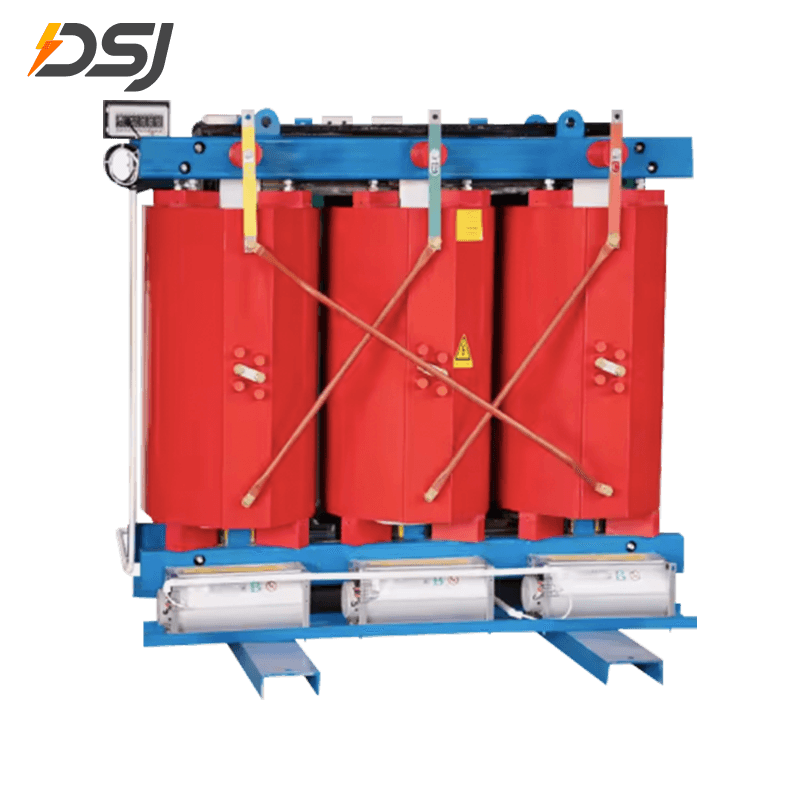

This CE/UL-certified dry-type electrical transformer is a 3-phase power transformer designed for industrial and commercial applications. With a rated capacity of 30–3,000 kVA and compatibility with 50Hz/60Hz frequencies, it features a dual-coil layered structure. It supports flexible input voltages (6–11 kV) and diverse output voltages (200–440 V), utilizing ANAF (Air Natural/Air Forced) cooling for efficient heat dissipation.

contact us Prev ProductNext Product

Standard Capacity

Phase	3 Phase
Rated Capacity	30-3,000KVA
Rated Frequency	50Hz/60Hz
Coil Number	2
Coil Structure	Layer coil
Input Voltage	11kv/10.5kv/10kv/6.3kv/6kv
Output Voltage	200v/220/240/380v/400v/415v/440v
Cooling Method	ANAF

Product Features

Enhanced Safety & Compliance:

Dry-type design eliminates fire/leak risks from insulating oil, meeting strict CE/UL standards for hazardous environments. Ideal for indoor installations (e.g., hospitals, data centers) with minimal safety barriers.
Global Voltage Compatibility:

Wide input range (6 kV–11 kV) and output options (200 V–440 V) suit diverse grid standards (e.g., 10 kV EU grids, 400 V ASEAN systems). Dual-frequency support (50/60 Hz) ensures global deployment without retrofitting.
Optimized Cooling & Longevity:

ANAF cooling combines silent natural convection with forced-air modes during peak loads, reducing thermal stress. Layered coil structure improves heat dissipation, extending service life by 15–20% vs. conventional designs.
Fast Lead Time:

The fastest lead time is 20 days.
