CE/UL Certified Outdoor Pre-Assembled Compact High Voltage Substation GIS Substation

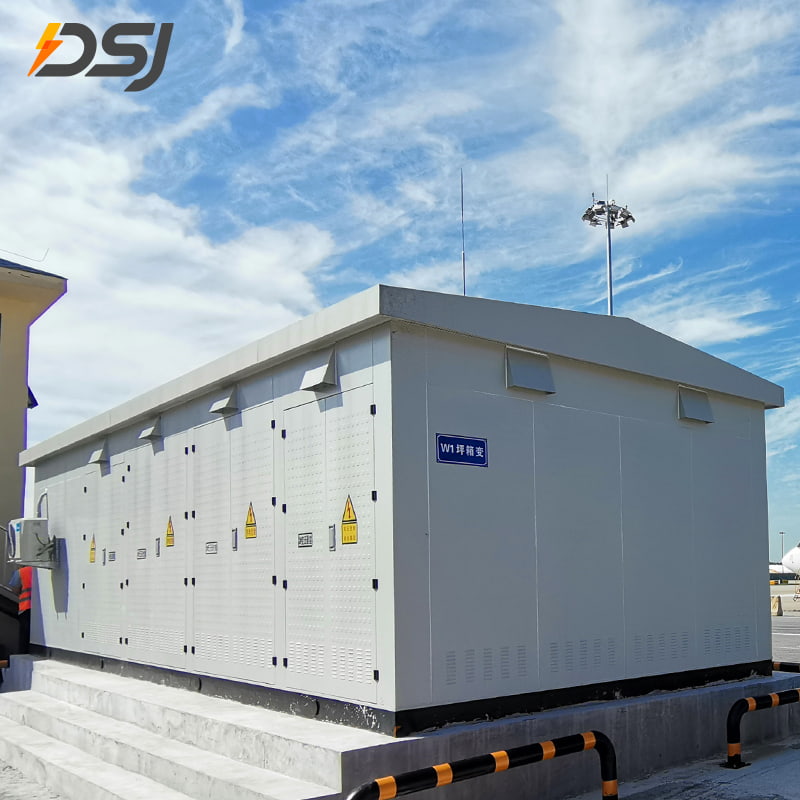

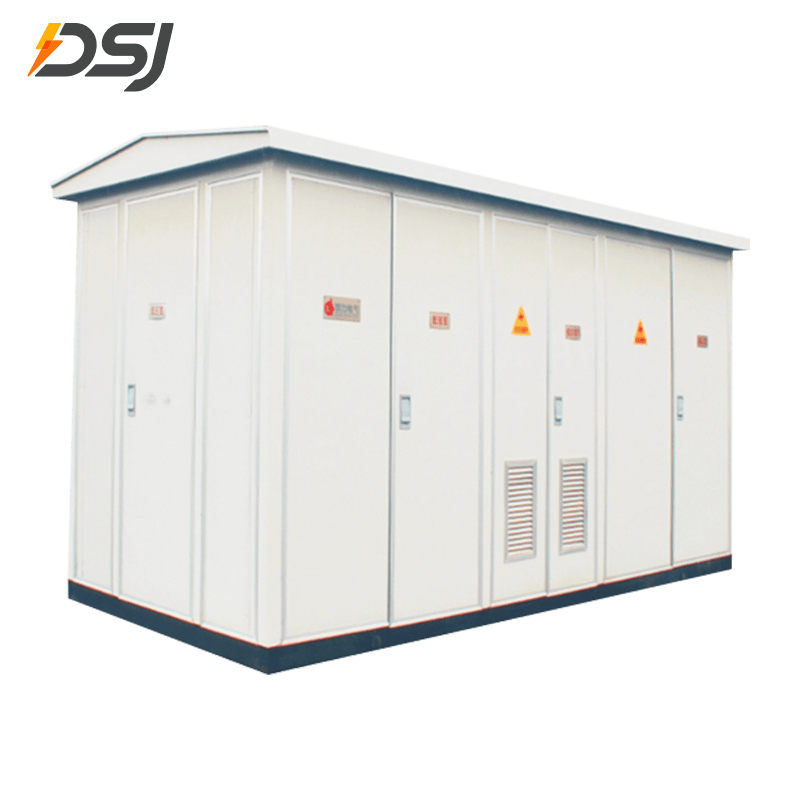

This outdoor pre-assembled HV substation offers a fully integrated power solution in a compact, weather-resistant design. Factory-assembled and rigorously tested, it minimizes on-site installation time and ensures reliable operation under harsh environmental conditions. This GIS Substation seamlessly combines all essential components into one modular unit, providing efficient and secure power distribution for utility networks, industrial applications, and remote locations.

contact us Prev ProductNext Product

Standard Capacity

Material	Cold-rolled steel plate
Origin	China
Protection Rating	IP4X
Rated Frequency	50Hz、60Hz
Rated Voltage	12kV，0.4kV
Rated Insulation Voltage	40kV
Rated Impulse Withstand Voltage	85kV
Grounding System	TN-S
Auxiliary Circuit Rated Voltage	DC 48V, AC 220V
Rated Current	1250A
Rated Current of Horizontal Busbar	1250A
Rated Current of Vertical Busbar	1000A
Rated Short-Time Withstand Current of Horizontal Busbar	20kA
Rated Peak Withstand Current of Horizontal Busbar	40kA
Rated Short-Time Withstand Current of Vertical Busbar	20kA
Rated Peak Withstand Current of Vertical Busbar	40kA

Product Features

Compact and Pre-Assembled:

The GIS substation comes pre-assembled for easy installation and quick setup, significantly reducing the time and cost required for field assembly.
European Style Design:

Features a European-style compact design that maximizes space efficiency while integrating transformer, switchgear, protection, and control functions in a single unit.
Durable and Weather-Resistant:

Specifically built for outdoor use, the high voltage substation is weatherproof, with highly durable enclosures designed to withstand challenging environmental conditions, such as extreme temperatures, rain, dust, and humidity.
Fast Lead Time:

The fastest lead time is 30 days.
