UL67 and UL891 Standards Explained: The Foundation of Safe Power Distribution

In the electrical industry, UL67 and UL891 are two essential safety standards. They define the requirements for two common types of power distribution equipment—panelboards and switchboards—covering design, manufacturing, and testing. As a manufacturer dedicated to high-quality electrical equipment, DSJ Electrical Co., Ltd. specializes in producing panelboards and switchboards that meet both UL67 and UL891 standards. We provide safe and reliable power distribution solutions to customers worldwide. Understanding these two standards helps engineers specify the right equipment and gives end-users a clearer picture of the electrical systems in their buildings. It also highlights the technical strengths of DSJ Electrical products.

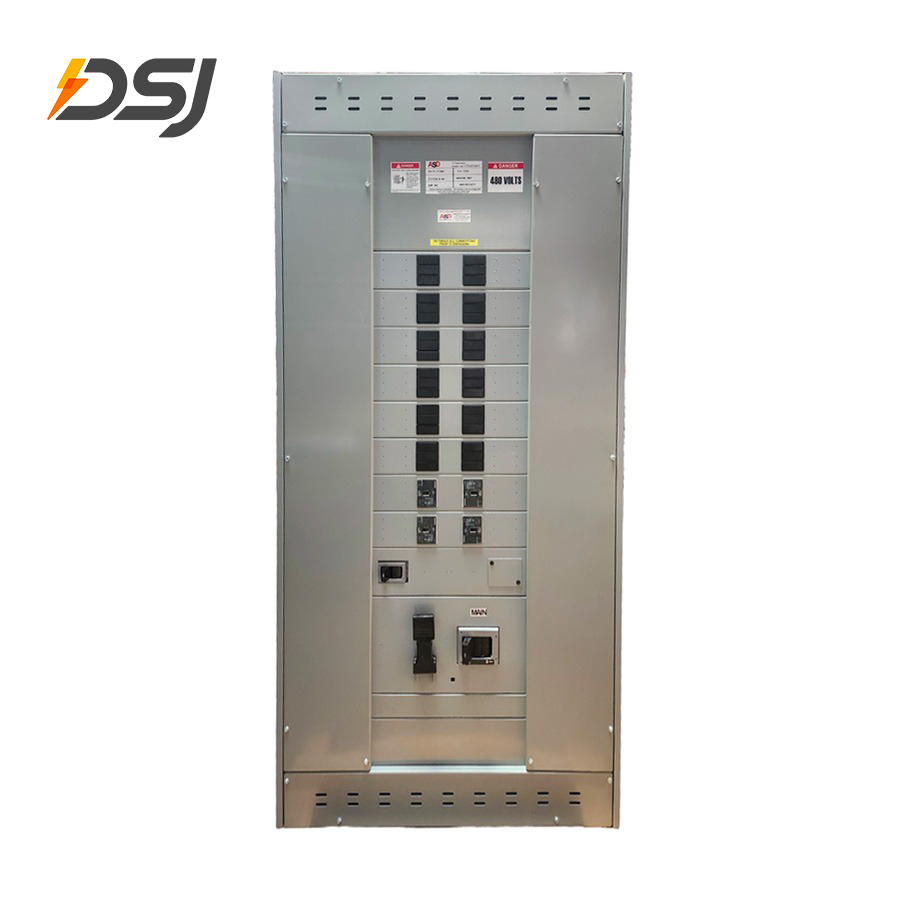

UL67 is the UL standard for panelboards. A panelboard is the most common type of electrical distribution equipment in daily use. It is typically a metal enclosure containing multiple circuit breakers. Its job is to take one main power feed and split it into smaller branch circuits for lighting, receptacles, and HVAC equipment. DSJ Electrical Co., Ltd. builds its UL67 series panelboards to meet every requirement of this standard. Through precision manufacturing and strict quality control, we ensure every unit delivers maximum safety. The core goal of UL67 is to prevent electric shock and fire hazards. Key requirements include installing barriers on service entrance equipment to prevent accidental contact with live parts. The standard also specifies rules for internal layout, insulation materials, and conductive parts. Products must pass rigorous tests for heat generation and short circuit conditions. In 2017, UL67 added a critical update: all panelboards used as service entrance equipment must include barriers. Even with the main breaker off, the line side remains live, and these barriers protect maintenance personnel. DSJ Electrical responded immediately. All our new panelboard models now integrate this safety barrier as standard, showing our strong commitment to user protection.

UL891 is the standard for low-voltage switchboards. Switchboards are larger than panelboards. They are usually floor-mounted, multi-section assemblies that act as the main distribution center for a building or industrial facility. Switchboards take high current from transformers or generators and feed it to downstream panelboards, large motors, and HVAC chillers. DSJ Electrical Co., Ltd. designs its UL891 series switchboards for heavy-duty industrial and commercial projects. They feature modular construction and high-quality components to handle high current and severe fault conditions. UL891 focuses on applications with high current and high short-circuit capacity. It requires the equipment to withstand the physical forces and heating effects of high fault currents. All components—breakers, bus bars, and meters—must work together as a coordinated system. The design must also allow safe operation and easy maintenance. The engineering team at DSJ Electrical fully understands these technical demands. We build our switchboards for exceptional stability and reliability in the field.

UL67 and UL891 have several key differences. DSJ Electrical Co., Ltd. understands both standards deeply. This allows us to recommend the right product for each specific application. Physically, UL67 panelboards are typically wall-mounted or recessed. They are smaller and shallower, with operation and maintenance usually from the front only. UL891 switchboards are floor-standing assemblies. They are large, often with multiple sections lined up. They can be accessed from the front, back, or sides for installation and maintenance. Electrically, UL67 panelboards handle voltage up to 600V. Their current ratings range from tens of amps up to 1200A, rarely exceeding 2000A. Their short-circuit withstand rating is lower. UL891 switchboards also operate up to 600V typically, but some versions go to 1000V. Current ratings start at 800A and go up to 5000A or more. They are built to withstand very high short-circuit currents. Inside, UL67 panelboards are compact and use molded case circuit breakers (MCCBs) and miniature circuit breakers (MCBs). UL891 switchboards are more complex. They may contain air circuit breakers (ACBs), disconnects, meters, relays, and protective relays. DSJ Electrical offers a full product line. We cover simple, compact designs up to large, complex assemblies. We meet the diverse needs of our customers.

In terms of applications, UL67 panelboards are found in residential home electrical panels, on every floor of commercial buildings in electrical closets, and in light industrial settings for lighting and small equipment. UL891 switchboards are used in main electrical rooms as service entrance equipment and bus-tie sections. They power large industrial plants, production lines, data centers, and critical loads. DSJ Electrical Co., Ltd. products have been installed successfully in many projects worldwide. Whether it's a residential complex, a commercial tower, a large factory, or a data center, you will find DSJ Electrical equipment on site. Think of it this way: UL891 switchboards are the tree trunk. They bring massive power into the building and distribute it to major areas. UL67 panelboards are the branches. They carry power to the final points of use—receptacles, lights, and equipment. Together, they form the backbone of a safe electrical system. DSJ Electrical provides complete solutions for both levels of the power distribution system.

For a safe and reliable power system, proper equipment selection is critical. Choose the right type based on your actual load current and available fault current. Follow all installation rules, especially UL67 barrier requirements. Have qualified electricians perform regular inspections. And always use UL-certified equipment to ensure compliance with the latest standards. Every panelboard and switchboard built by DSJ Electrical Co., Ltd. is UL certified. We provide full test reports and certification documents with every shipment. Our customers can install our products with complete confidence. From the panel in your home to the main switchgear in an industrial park, UL67 and UL891 standards work behind the scenes to keep us safe. DSJ Electrical turns those standards into real-world protection through precision manufacturing and rigorous quality management. Understanding these standards and knowing what DSJ Electrical Co., Ltd. offers helps you make better decisions for your projects and ensures safety for people and property. Contact DSJ Electrical Co., Ltd. today to discuss your next project. We are ready to provide top-quality products and expert support.
