UL67 Distribution Panels: Safe and Efficient Electrical Power Management

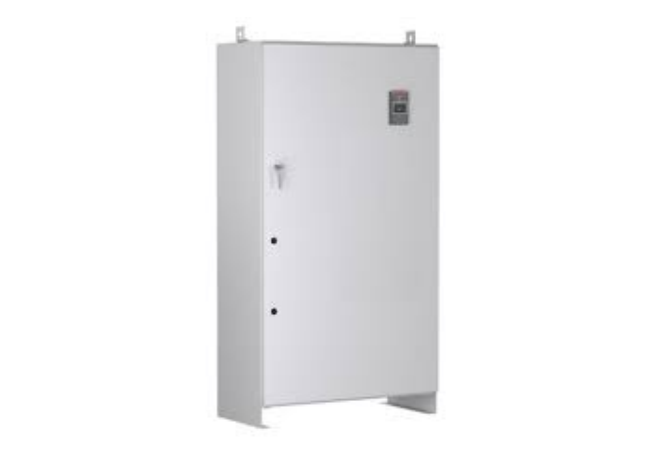

UL67 distribution panels are essential components in modern electrical systems, designed for single-panel assembly or a group of panel units in a single-sided configuration. These panels typically include busbars, automatic overcurrent devices, and switches to control lighting, thermal, or power circuits. UL67 distribution panels are installed inside cabinets or enclosures mounted on or against walls, providing front-access only for safe operation. They offer a reliable and organized solution for power distribution in residential, commercial, and industrial applications.

Power Distribution Boards (PDBs)

Power distribution boards, often called PDBs, are a type of UL67 distribution panel designed to protect lighting and appliance branch circuits with overcurrent devices covering 10% or less of the circuits. PDBs serve as the main point for electrical distribution from the primary power source, ensuring reliable operation and protection against overloads or electrical faults. Properly designed power distribution boards comply with UL standards and provide a safe interface for power management.

Lighting and Appliance Branch Circuit Distribution Boards

Lighting and appliance branch circuit distribution boards are specialized UL67 panels designed for circuits with over 10% protection via overcurrent devices. These boards connect to the neutral point of the distribution panel and offer overcurrent protection of 30A or less per conductor. They are commonly used in commercial and residential setups to manage multiple lighting and appliance circuits safely. Using UL67-compliant branch circuit distribution boards ensures that circuits are properly protected while maintaining operational efficiency.

Service Equipment in Electrical Systems

Service equipment is critical for controlling and disconnecting power in electrical systems. It typically consists of circuit breakers or switches, fuses, and associated components connected to the load end of service conductors. UL67 distribution panels intended for use as service equipment must meet the requirements outlined in UL 869A. Properly installed service equipment provides the main control point, allowing safe maintenance and emergency shutdowns, which are essential for both safety and compliance.

Dead Front Shields: Enhancing Safety in Distribution Panels

Dead front shields are an important safety feature in UL67 distribution panels. These shields prevent live parts from being exposed to personnel on the operating side of the panel. A dead front shield is installed behind the door to cover wiring spaces and non-insulated components, which would otherwise be exposed when the door is open.

For metal barriers designed to limit accidental contact:

• Uncoated metal: minimum thickness 0.032 inches (0.81 mm)
• Galvanized metal: minimum thickness 0.034 inches (0.86 mm)
• Aluminum: minimum thickness 0.050 inches (1.27 mm)



These barriers should be removable or repositionable without touching bare live parts or damaging insulation. Factory-installed barriers protecting terminals and wiring do not require removable construction if intended solely for installation. Non-metallic barriers must meet safety grid requirements and allow safe access for maintenance. Including proper dead front shields in distribution panels enhances safety and compliance with UL67 standards.

Applications Not Covered by UL67

Not all electrical switchgear falls under UL67 standards. Specific applications include:

• Transfer switch equipment for connecting load conductors from one power source to another (UL 1008).
• Industrial control equipment factory-wired components for process control (UL 508A).
• Single-circuit distribution equipment without instrument sockets (UL 489).
• Distribution equipment for temporary or portable installations (UL 231).
• Controllers, timers, or temperature regulation devices for pools, spas, or hot tubs (UL 1563).
• Factory-wired components for fountains or floating fountains (UL 778, UL 676, UL 508A).
• Portable distribution equipment (UL 1640).



Selecting the correct UL standard is crucial. Using equipment designed for a different standard can compromise safety, reliability, and compliance. Each type of switchgear must adhere to its respective UL certification to ensure proper function and safety.

UL67 Distribution Panels: Key Features and Benefits

• Overcurrent Protection: Automatic devices protect circuits from overloads and faults.
• Dead Front Safety: Shields prevent accidental contact with live components.
• Service Equipment Compliance: Panels designed for main control points comply with UL 869A.
• Flexible Installation: Can be installed in cabinets or enclosures on or against walls.
• Branch Circuit Management: Supports multiple lighting and appliance circuits with precise protection.



Conclusion

UL67 distribution panels, including power distribution boards, branch circuit distribution boards, and service equipment, are essential for safe, reliable, and efficient electrical systems. Incorporating dead front shields and adhering to the correct UL standards ensures personnel safety, system reliability, and regulatory compliance. Whether for residential, commercial, or industrial applications, using UL67-certified distribution panels provides peace of mind and efficient power management.
