What are the uses of a Ring Main Unit (RMU)?

In modern urban power distribution networks and industrial power systems, the Ring Main Unit (RMU) plays a crucial role as a key power distribution device. With the acceleration of urbanization and the surge in electricity demand, understanding the uses of RMUs and how they optimize power systems is of great importance to power engineers and energy managers.

What is a Ring Main Unit (RMU)?

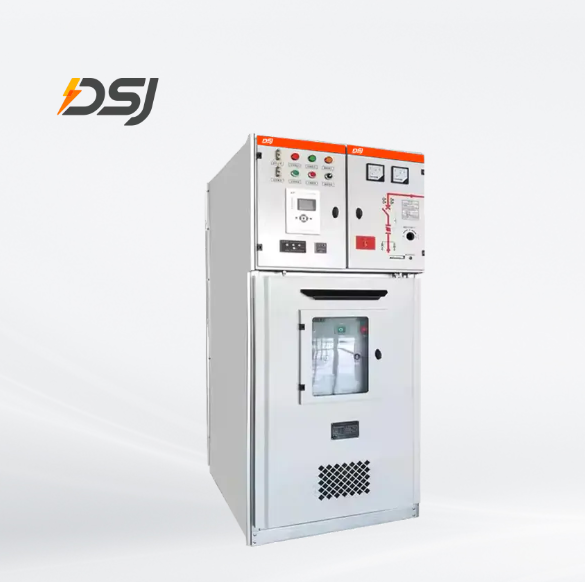

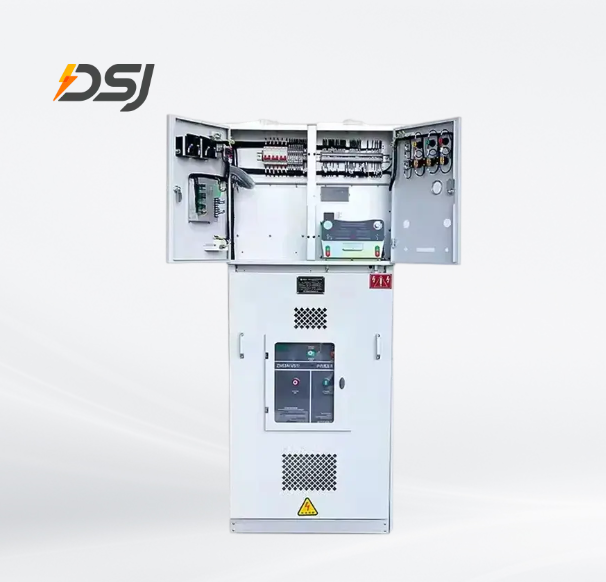

A Ring Main Unit (RMU) is a factory-assembled, well-sealed, compact switchgear. It typically consists of load switches, disconnect switches, grounding switches, and circuit breakers, and is mainly used in medium-voltage power distribution systems (typically 10kV to 35kV).

The original design purpose of the Ring Main Unit (RMU) was to achieve ring power supply, that is, to draw power from two different directions, thereby greatly improving the reliability of power supply.

Core Uses of a Ring Main Unit (RMU)

1. Improving Power Supply Reliability and Continuity

This is the most core use of the Ring Main Unit (RMU). In traditional radial power distribution, a fault in any part of the line will cause a complete power outage for all downstream users. However, a ring network constructed using a ring mains unit (RMU) can isolate the faulty section by operating switches and restore power from another source when a fault occurs in the main line, minimizing outage time.

2. Line Distribution and Load Control

Ring mains units (RMUs) are primarily used to distribute power from the main line to various branches. They can connect transformers, cable distribution boxes, or other distribution equipment. Through internal load switches, operators can flexibly control power distribution in different areas, ensuring a balanced grid operation.

3. Equipment Protection and Fault Isolation

Modern ring mains units (RMUs) are typically equipped with fuse combinations or vacuum circuit breakers. When downstream equipment (such as power transformers) experiences a short circuit or overload, the ring mains unit (RMU) can quickly interrupt the current, protecting critical and expensive equipment from damage and limiting the scope of the incident to a minimum.

4. Space Optimization and Compact Layout

Land resources are extremely valuable in city centers, residential areas, and commercial districts. Ring main units (RMUs) feature a compact design, especially SF6 gas-insulated RMUs (GIS) or environmentally friendly gas-insulated units, which occupy a significantly smaller area than traditional open switch stations. This makes them ideal for installation in basements, sidewalks, or small distribution rooms.

Common Application Scenarios of Ring Main Units (RMUs)

Due to their superior performance, RMUs are widely used in the following areas:

Urban Power Grid Upgrades: Improving the power supply stability of older communities.

Industrial Parks: Providing reliable power switching for large factories.

Renewable Energy Access: In wind farms and photovoltaic power plants, used to collect and connect electricity to the main grid.

Infrastructure Construction: Backup power systems for airports, railways, subway systems, and large hospitals.

Why Choose a Modern Ring Main Unit (RMU)?

With the development of smart grids, today's Ring Main Unit (RMU) is no longer just a simple mechanical switch.

Automatic Integration: Supports telemetry, remote signaling, and remote control (three-remote functions), enabling automatic fault location and isolation in conjunction with distribution network automation systems.

Strong Environmental Adaptability: Its sealed design allows it to withstand harsh environments such as humidity, salt spray, and dust.

Maintenance-Free Features: High-quality ring main units (RMUs) offer an operating life of over 20 years, with virtually no maintenance required for internal energized components.

Ring main units (RMUs) are not only "transfer stations" in power distribution systems but also "guardians" of modern urban energy security. Through flexible wiring methods, superior protection functions, and a compact structure, they resolve the contradiction between high urban electricity density and limited space.

If you are planning a power distribution system upgrade or seeking a highly reliable power distribution solution, choosing a technologically advanced and high-quality ring main unit (RMU) is the best investment to improve overall grid efficiency.
