What’s the Difference Between American and European Pad-Mounted Transformers? DSJ Electrical Breaks It Down

Pad-mounted transformers come in two main designs: American-type and European-type. While both serve similar functions, their construction and application are quite different. At DSJ Electrical, we have spent years working with both systems across many projects. In this guide, we explain the key differences so you can choose the right solution for your needs.

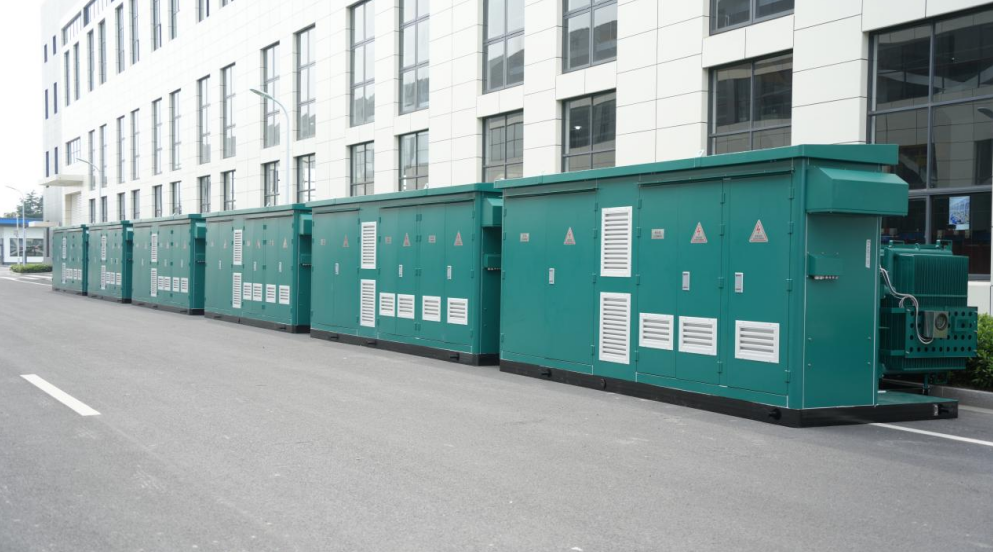

The main difference lies in the internal layout. American-type pad-mounted transformers use a compact, "tank-type" design. The high-voltage switch and fuses are placed directly inside the transformer tank and submerged in the same insulating oil as the core and coils. This makes the unit smaller and lighter. In fact, an American-type unit takes up about one-third the space of a European-type unit. On the other hand, European-type pad-mounted transformers use a "compartmentalized" layout. The high-voltage section, transformer section, and low-voltage section are all separate from each other. They are connected by cables or busbars. This design is easier to understand and maintain, but it requires more space. Often, you need a concrete pad or even a small room to house it. DSJ Electrical has noticed that the American market favors compact designs to save space, while the European market focuses more on making each part easy to access and maintain.

When it comes to performance and maintenance, each type has its strengths and weaknesses. American-type units are very tough. Because the live parts are sealed inside the oil, they can achieve an IP67 protection rating. This makes them great for outdoor, dusty, or wet locations. The downside is that repairs are difficult. If something fails inside, you often have to lift the entire core out or drain the oil to fix it. European-type units are easier to service. Each compartment has its own door. If a component fails, you can replace or repair just that section without touching the rest. European-type units also offer better protection and control. They can easily integrate with digital relays, remote monitoring, and automation systems. This makes them a good fit for critical applications like hospitals, data centers, or high-rise apartments. DSJ Electrical has learned from years of experience that users often have to choose between a compact footprint and easy maintenance. That is why we focus on optimizing both designs. For example, we add service-friendly features to our American-type units and reduce unnecessary space in our European-type units. Our goal is to make both options work better for real-world conditions.

Cost and application are also important factors. American-type pad-mounted transformers cost less to build and install. They are ideal for projects where space is tight, the budget is limited, or you need power quickly. Typical uses include temporary power for construction sites, retrofitting old residential areas, and solar farms. European-type units cost more upfront. However, they are easier to maintain and upgrade over time. This makes them more economical in the long run for permanent installations like industrial parks or municipal infrastructure. DSJ Electrical has helped many clients choose between these two options. We have found that some users go for the cheapest option or the most "advanced" one without thinking about the total cost of ownership. We recommend asking three simple questions before you decide: Is space very limited? Will you need to repair or upgrade the unit later? How critical is continuous power? If you answered "yes" to space and budget concerns, an American-type unit is likely the better fit. If maintenance and reliability are your top priorities, a European-type unit is worth the extra investment.

In short, neither design is better than the other. The right choice depends on your specific project needs. DSJ Electrical has years of hands-on experience with both American-type and European-type pad-mounted transformers. We can help you evaluate your power requirements, site conditions, and budget to find the best solution. If you are unsure which type is right for your project, feel free to contact our technical team. We are here to help you make an informed decision.
