Low-Voltage Switchgear

CE Certified Construction Site Portable Switchboard

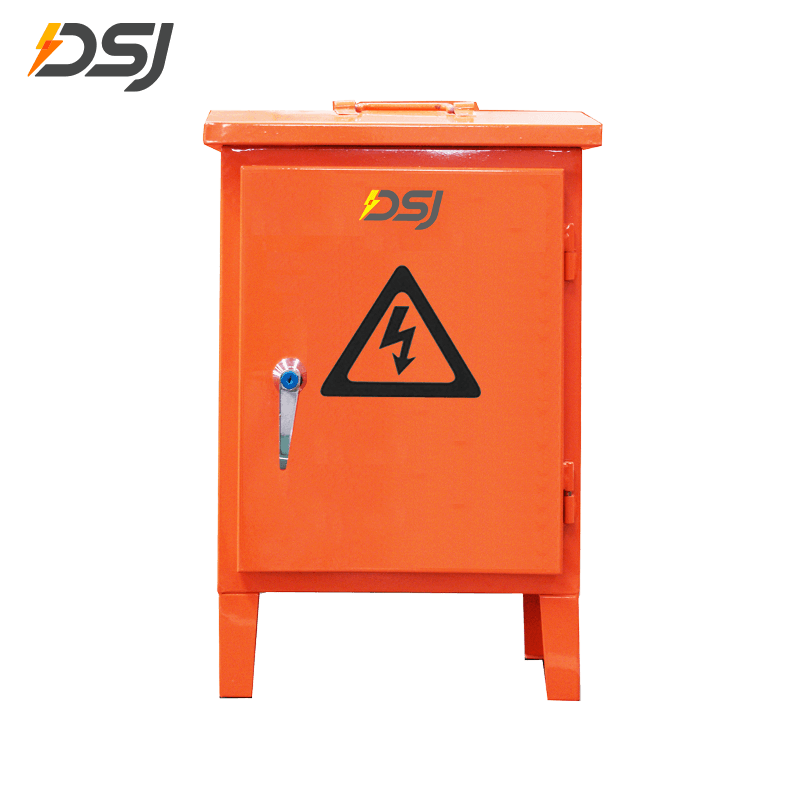

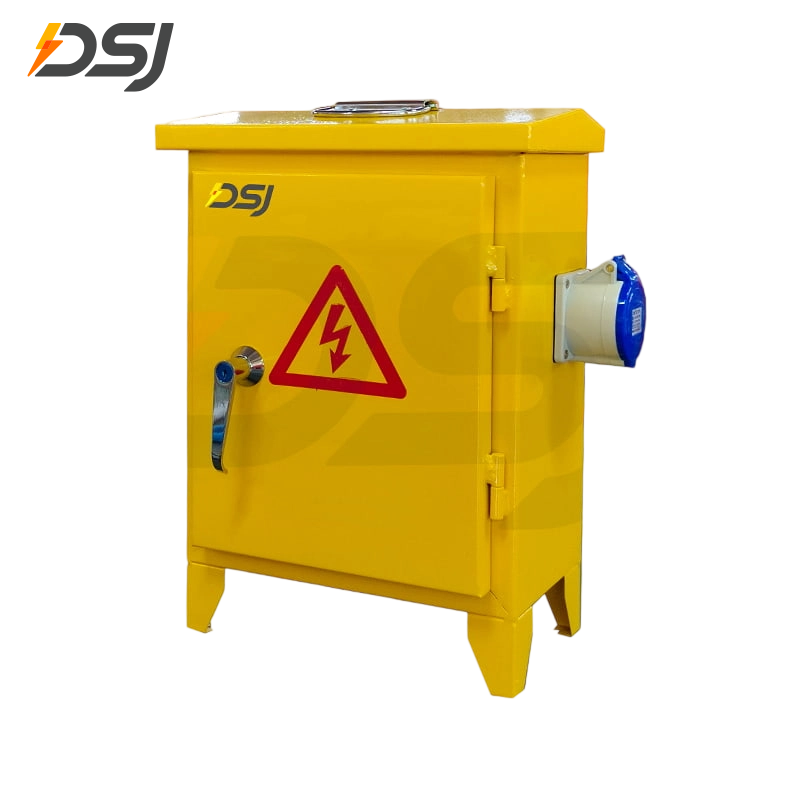

This distribution board is a portable unit designed for temporary electrical power distribution, often used on construction sites and outdoor events. It is compact, easy to move, and designed to withstand rugged environments, offering safe power management and distribution in various settings.

contact us Prev ProductNext Product

Standard Capacity

Country of Origin	China
CQC Certificate No.	CQ02010010301448623
Electric Shock Protection Category	Class I
Enclosure Protection Rating	IP43-IP66
Second-layer Door Protection Rating	IP21
Rated Frequency	50Hz、60Hz
Pollution Degree	3
Insulating Material Name and Heat Resistance Class	DMC, Heat Resistance Class F
Rated Voltage	380V
Rated Insulation Voltage	660V
Rated Impulse Withstand Voltage	6kV
Rated Main Busbar Current	20A
Rated Short-Time Withstand Current of Main Busbar	3kA
Rated Peak Withstand Current of Main Busbar	4.5kA
Rated Current of Main Switch	20A
Rated Short-Circuit Breaking Capacity of Main Switch	3kA
Number of Outgoing Circuits	1 circuit

Product Features

Mobility and Flexibility:

The portable switchboard is designed for easy transport across the construction site, allowing for flexible power distribution where and when it's needed most, improving workflow efficiency.
Rugged and Durable:

Built with impact-resistant materials and a weatherproof casing, the power box can withstand the harsh conditions of construction sites, including exposure to dust, moisture, and physical impact.
Safety Features:

Equipped with overload protection, short-circuit protection, and earth leakage protection, the portable power box ensures the safety of workers and equipment by minimizing electrical hazards.
