Low-Voltage Switchgear

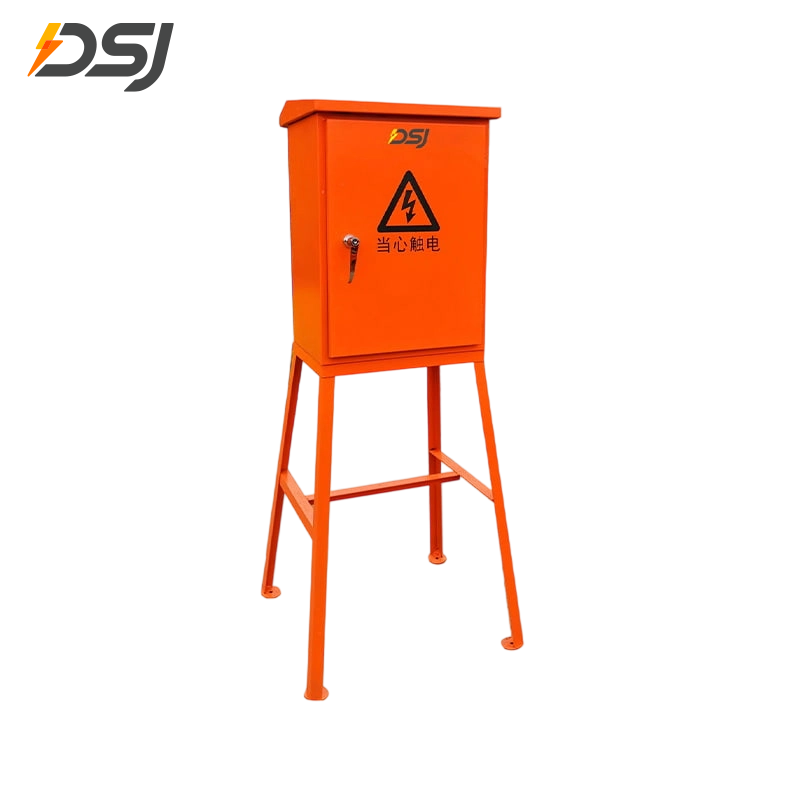

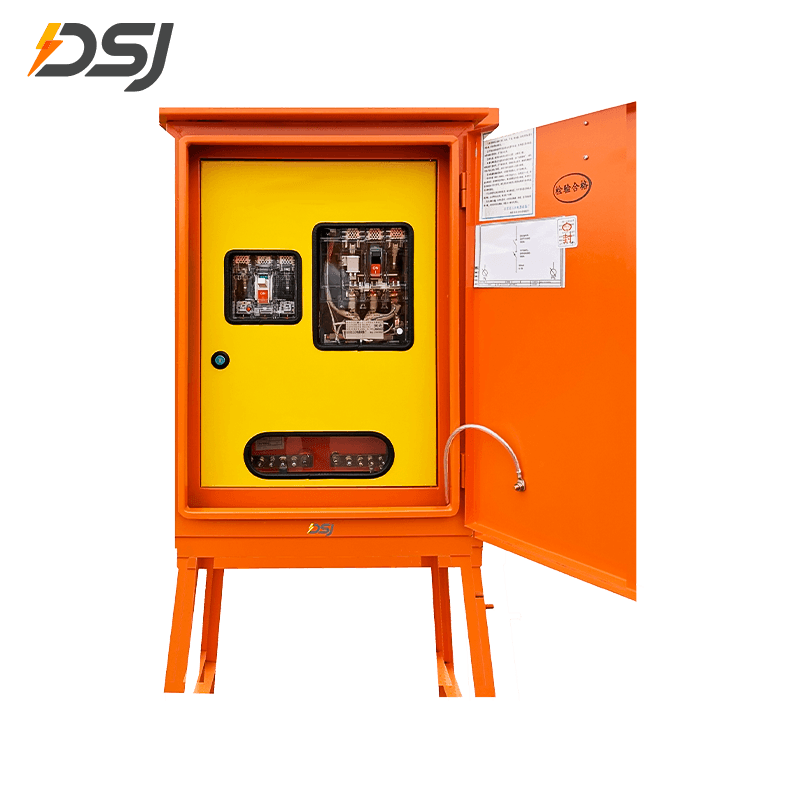

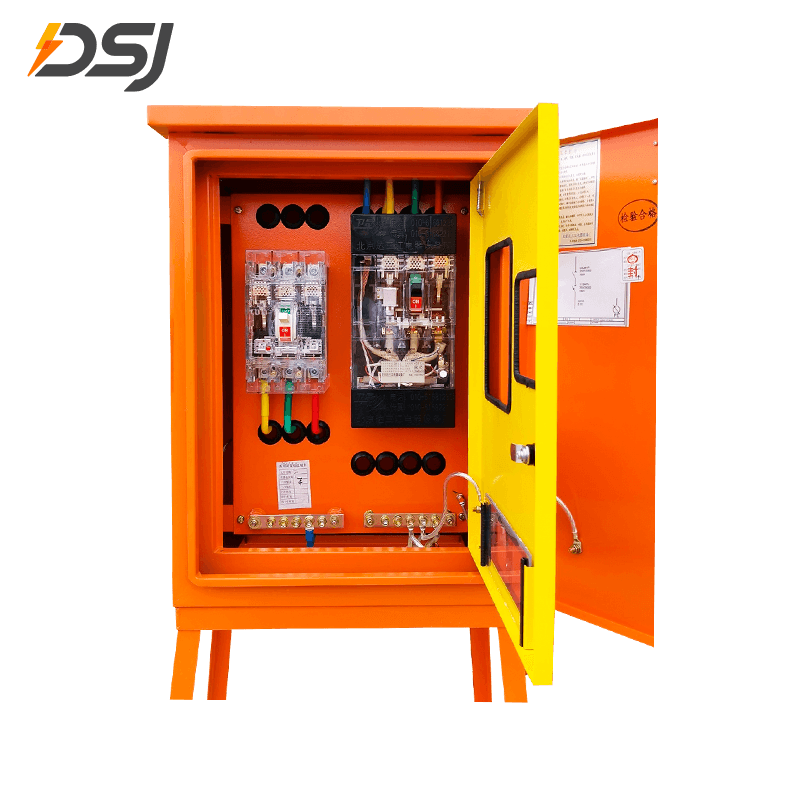

CE Certified Construction Site Switchboard

The low voltage switchgear is used for controlling, protecting, and isolating electrical equipment in electrical power systems on construction site. It can be used in both low-voltage applications, providing reliable performance to ensure operational safety and minimize the risk of electrical faults.

contact us Prev ProductNext Product

Standard Capacity

Country of Origin	China
CQC Certificate No.	CQ02010010301448623
Electric Shock Protection Category	Class I
Enclosure Protection Rating	IP43-IP66
Second-Layer Door Protection Rating	IP21
Pollution Degree	3
Insulating Material Name and Heat Resistance Class	DMC, Heat Resistance Class F
Rated Voltage	380V
Rated Insulation Voltage	660V
Rated Impulse Withstand Voltage	6kV
Rated Frequency	50Hz、60Hz
Rated Main Busbar Current	40A-630A
Rated Short-Time Withstand Current of Main Busbar	3kA
Rated Peak Withstand Current of Main Busbar	4.5kA
Rated Current of Main Switch	100A
Rated Short-Circuit Breaking Capacity of Main Switch	5kA
Number of Outgoing Circuits	1 circuit

Product Features

Reliable Power Control:

The switchboard provides a centralized control point for managing the electrical circuits on a construction site, allowing easy on/off switching and ensuring the power supply is properly distributed.
Safety and Protection:

Features such as overload protection, short-circuit protection, and earth leakage protection safeguard both workers and electrical equipment, reducing the risk of electrical hazards on-site.
Sturdy and Durable Construction:

Built to withstand the tough conditions on construction sites, the switch box is made from weather-resistant, impact-resistant materials that protect the internal components from physical damage, dust, moisture, and harsh environmental factors.
