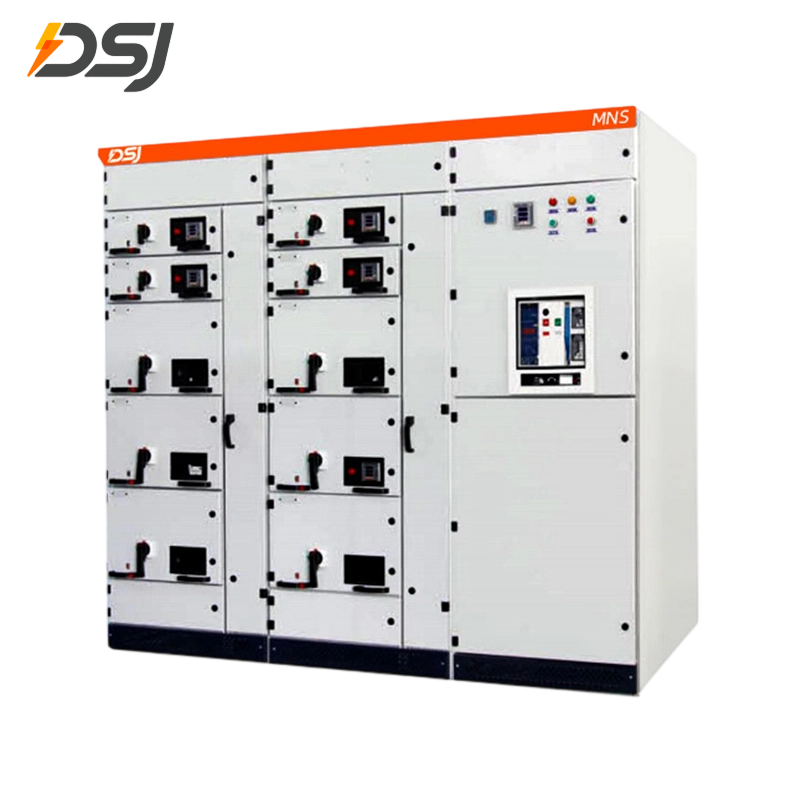

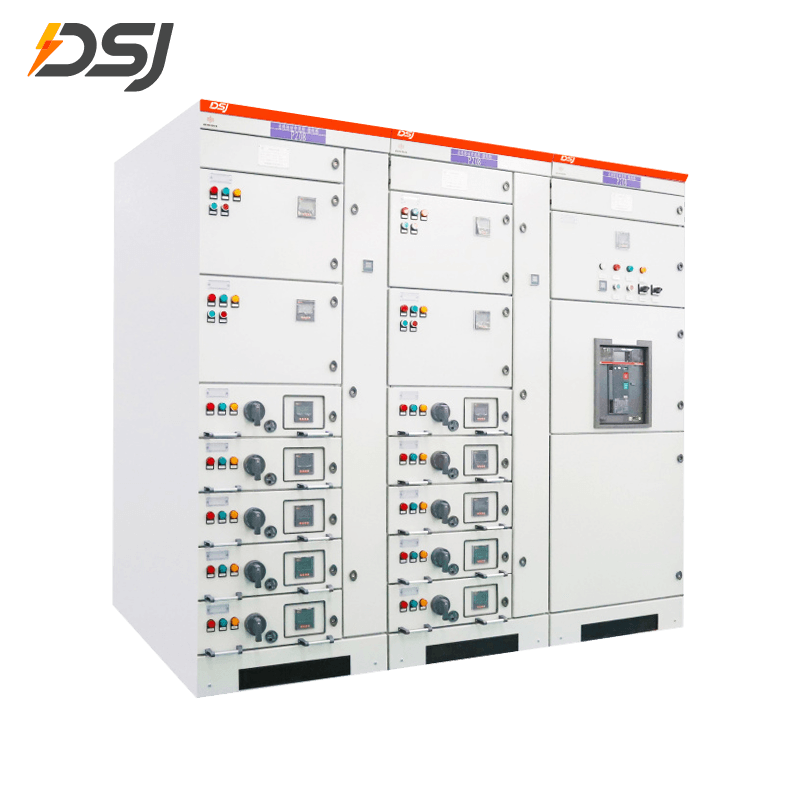

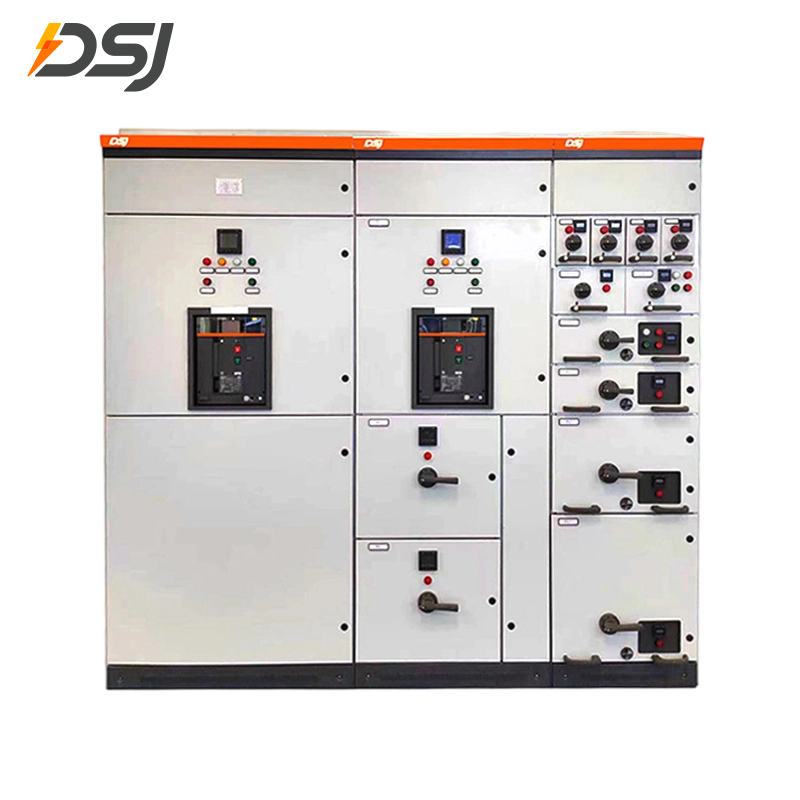

CE/UL Certified Switchboard MNS Low Voltage Switchgear

The MNS low-voltage switchgear offers superior performance, flexibility, and safety, making it the ideal solution for modern electrical systems in diverse industries. Its robust design, combined with compliance to international standards, ensures long-term reliability and ease of use in both domestic and international applications. Meanwhile, it's CE and UL certified.
The MNS switchboard is built with a highly flexible framework that requires no maintenance once assembled. It can house a variety of standard components, making it adaptable to various operational requirements. The modular design of this metal-clad switchgear, including its electrical structure, optimizes space usage and allows for compliance with different environmental needs, achieving the required protection levels.

contact us Prev ProductNo Next Product

Standard Capacity

Material	Cold-rolled steel plate
Origin	China
CE Certificate	M.2025.206.C115436
CQC Certificate Number	CQC2013010301593071
Protection Rating	IP43-IP66
Rated Frequency	50Hz、60Hz
Rated Voltage	AC 380V
Rated Insulation Voltage	AC 660V
Rated Impulse Withstand Voltage	8kV
Grounding System	TN-S system
Auxiliary Circuit Rated Voltage	AC 220V、AC380V
Rated Current	1000A-2500A
Rated Current of Horizontal Busbar	1000A-2500A
Rated Current of Vertical Busbar	1500A
Rated Short-Time Withstand Current of Horizontal Busbar	30kA、50kA
Rated Peak Withstand Current of Horizontal Busbar	63kA、105kA
Rated Short-Time Withstand Current of Vertical Busbar	30kA、50kA
Rated Peak Withstand Current of Vertical Busbar	63kA、105kA

Product Features

Versatile Applications:

Suitable for diverse industries, including power generation, petrochemicals, maritime, oil drilling, mining, wastewater treatment, and more. It meets the power distribution and motor control needs of a wide range of applications.
Compliance with International Standards:

The MNS switchboard meets IEC standard and has CE/UL certification, ensuring its quality, safety, and reliability for both domestic and international use. It is suitable for indoor installation, with optional protection levels up to IP54 for outdoor or harsh environments.
Optimized Electrical Design:

The metal clad switchgear features cost-effective circuit layouts and is designed for easy integration with standard components, making it ideal for project engineers and designers. The entire series is standardized, ensuring consistent performance and ease of maintenance.
