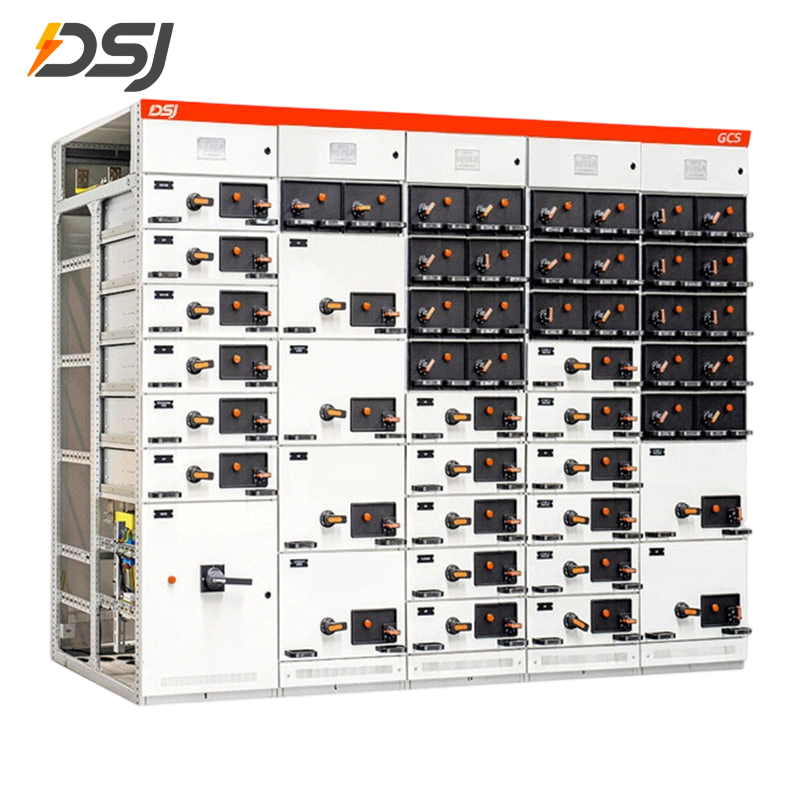

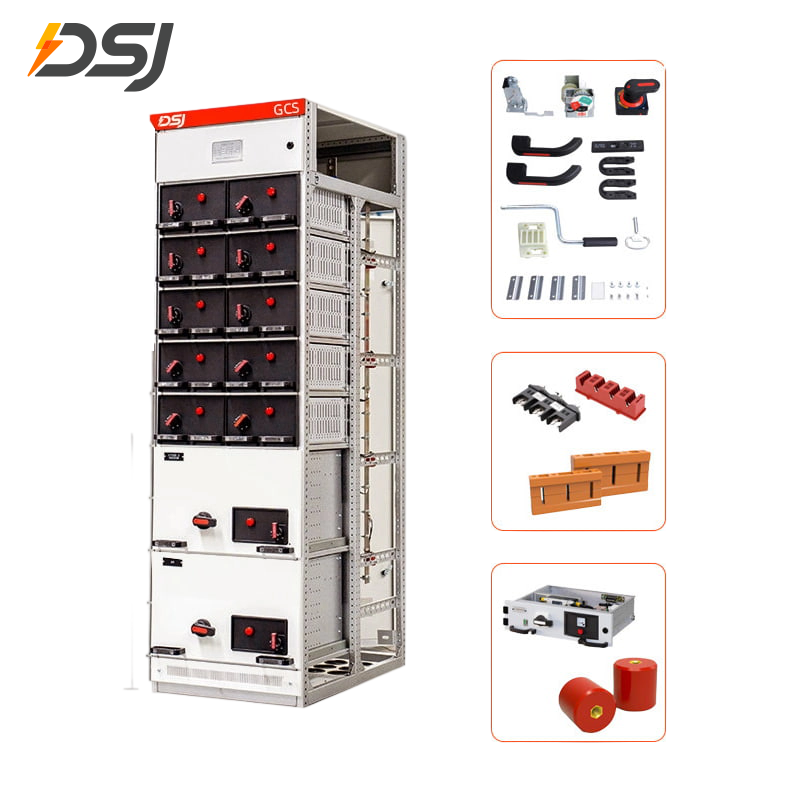

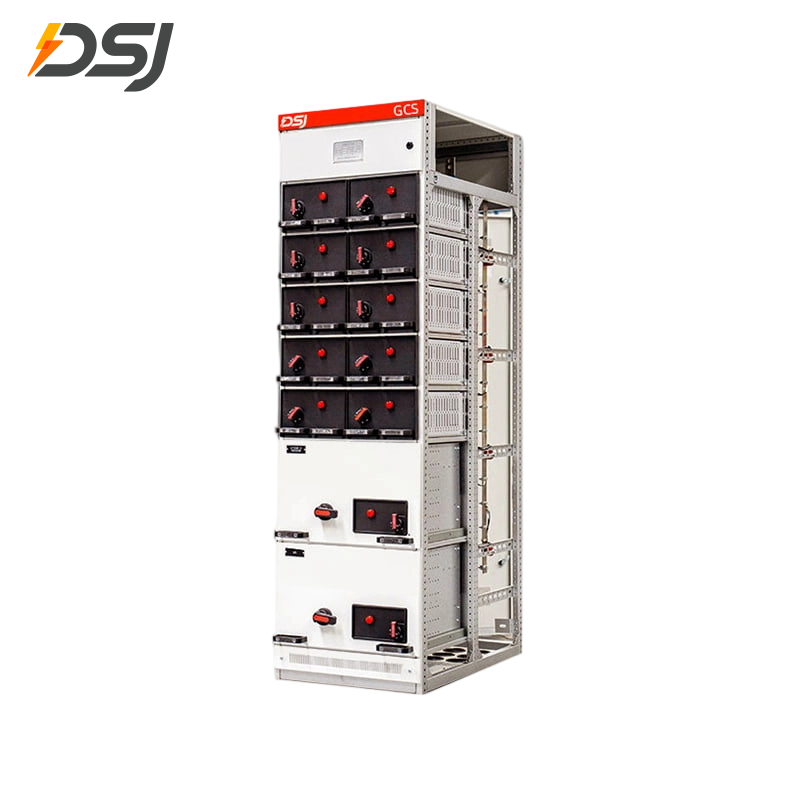

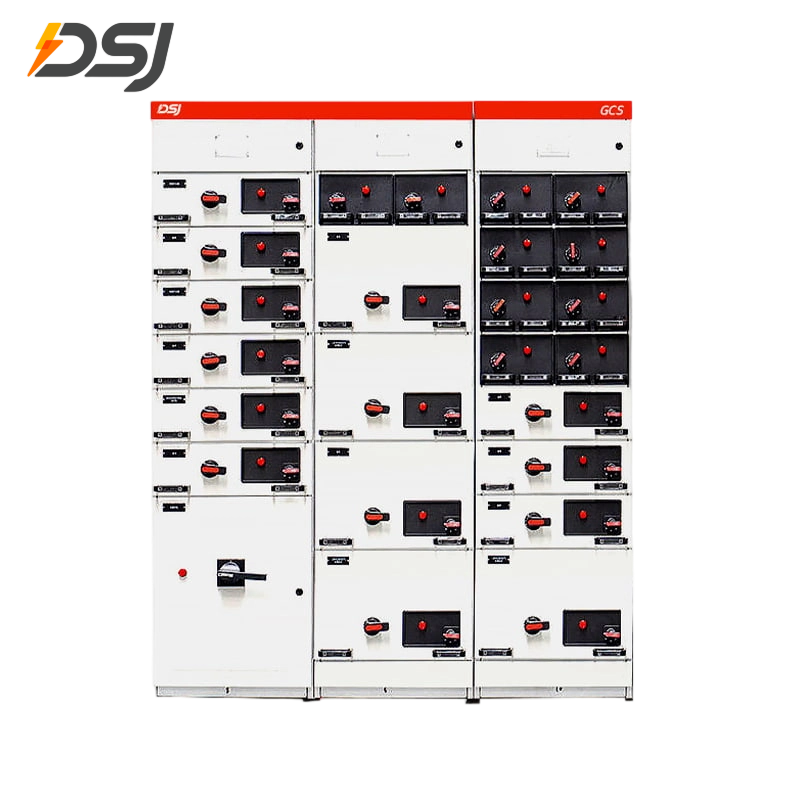

CE/UL Certified Switch Panel GCS Low Voltage Switchgear/Switchboard

The GCS low-voltage switchgear is a high-performance product designed to meet the growing needs of the power market. Widely adopted by power users, it is ideal for a variety of industries, including power plants, petroleum, chemical, metallurgy, textiles, and high-rise buildings.
This metal-clad switchboard is designed for systems operating at a rated frequency of 50/60 Hz, with a rated working voltage of 380V and a rated current of up to 1000A. It serves as a reliable low-voltage switchgear system for power generation, power supply, motor control, and power compensation in electrical systems.

contact us Prev ProductNext Product

Standard Capacity

Material	Cold-rolled steel plate
Origin	China
CE certificate	M.2025.206.C115436
Protection Rating	IP43-IP66
Rated Frequency	50Hz、60Hz
Rated Voltage	AC 380V
Rated Insulation Voltage	AC 660V
Rated Impulse Withstand Voltage	8kV
Grounding System	TN-S system
Auxiliary Circuit Rated Voltage	AC 220V、AC380V
Rated Current	1000A-2500A
Rated Current of Horizontal Busbar	1000A-2500A
Rated Current of Vertical Busbar	1500A
Rated Short-Time Withstand Current of Horizontal Busbar	30kA、50kA
Rated Peak Withstand Current of Horizontal Busbar	63kA、105kA
Rated Short-Time Withstand Current of Vertical Busbar	30kA、50kA
Rated Peak Withstand Current of Vertical Busbar	63kA、105kA

Product Features

Modular and Flexible:

The GCS low-voltage switchgear features a modular design that provides excellent flexibility, allowing it to be easily customized and expanded based on specific requirements.
High Reliability and Durability:

Built for high-performance, it provides reliable operation and ensures long-lasting durability even in demanding environments. It is designed to handle heavy-duty applications and protect electrical equipment from faults and overloads.
Advanced Protection Features:

Equipped with overload, short-circuit, and earth leakage protection, providing comprehensive protection to ensure the safety of both the equipment and personnel.
