Medium-Voltage Switchgear

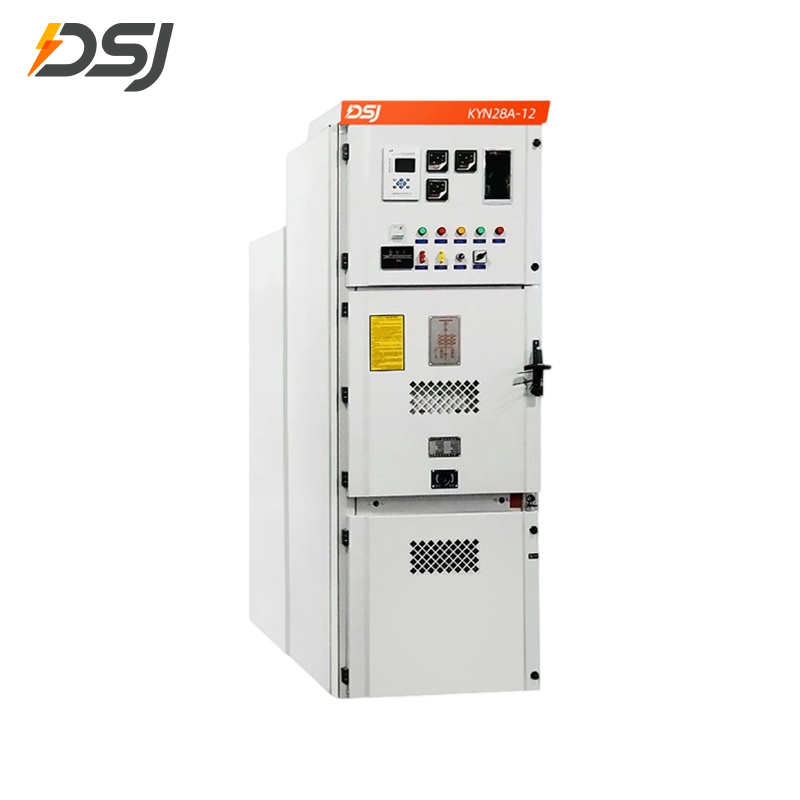

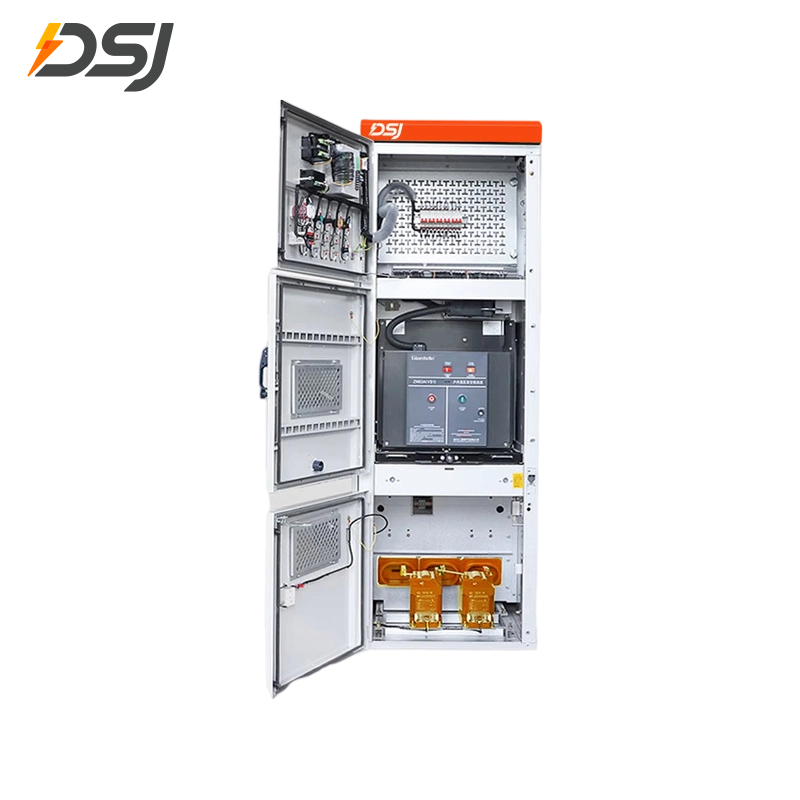

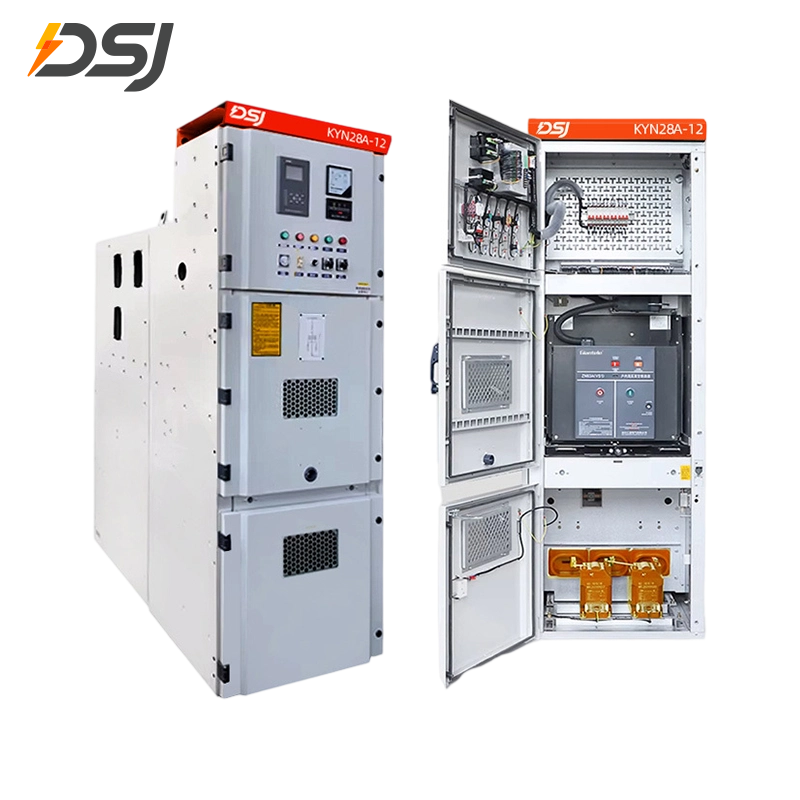

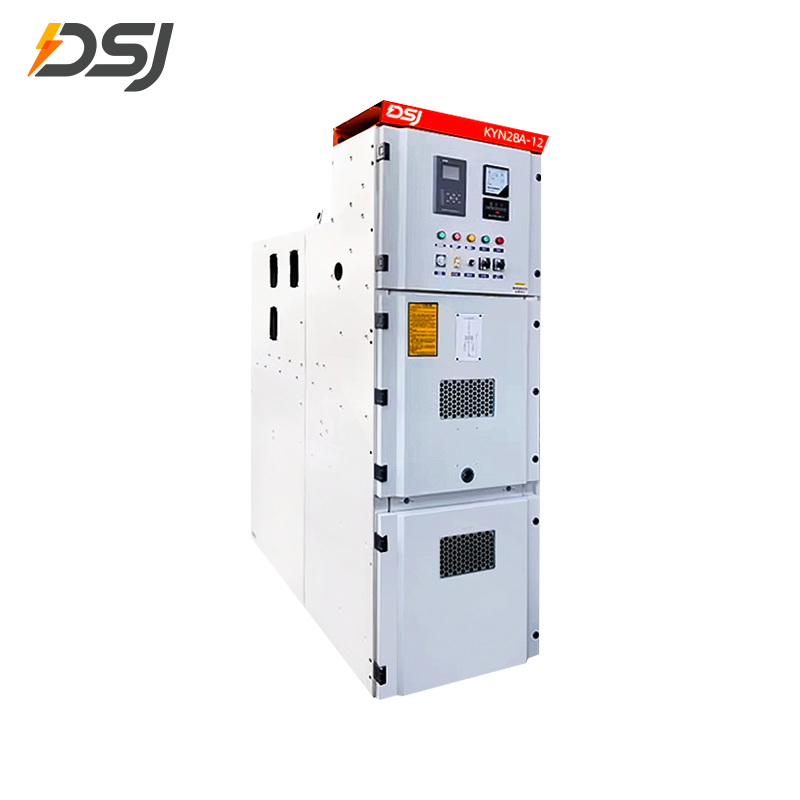

KYN28A-12 CE/UL Certified Metal Clad Switchgear Medium Voltage Switchgear/Switchboard

The medium voltage switchgear is engineered for efficient and reliable power management in a wide range of applications, from industrial facilities and commercial complexes to utility substations. This metal-clad switchgear features robust construction, integrated safety protection, and intelligent monitoring systems that ensure optimal performance even under demanding conditions. The modular design of MV switchgear allows for flexible configuration and easy maintenance, reducing downtime and enhancing overall system efficiency.

contact us Prev ProductNo Next Product

Standard Capacity

Material	Aluminum-zinc coated steel plate, cold-rolled steel plate
Origin	China
Protection Rating	IP4X
Rated Frequency	50Hz、60Hz
Rated Voltage	12kV
Rated Insulation Voltage	Phase-to-phase, phase-to-ground 42kV; Circuit breaker contact, isolator contact 48kV
Rated Impulse Withstand Voltage	Phase-to-phase, phase-to-ground 75kV; Circuit breaker contact, isolator contact 85kV
Auxiliary Circuit Rated Voltage	AC/DC 110V, 220V
Rated Current	1250A
Rated Current of Horizontal Busbar	1250A
Rated Current of Vertical Busbar	1250A
Rated Short-Time Withstand Current of Horizontal Busbar	31.5kA
Rated Peak Withstand Current of Horizontal Busbar	80kA
Rated Short-Time Withstand Current of Vertical Busbar	31.5kA
Rated Peak Withstand Current of Vertical Busbar	80kA

Product Features

High Reliability and Safety:

Features robust construction and advanced protection for stable operation.
Easy Installation and Maintenance:

Flexible design saves time and cost.
Superior Insulation and Electrical Protection:

Effectively prevents electrical faults, enhancing safety.
