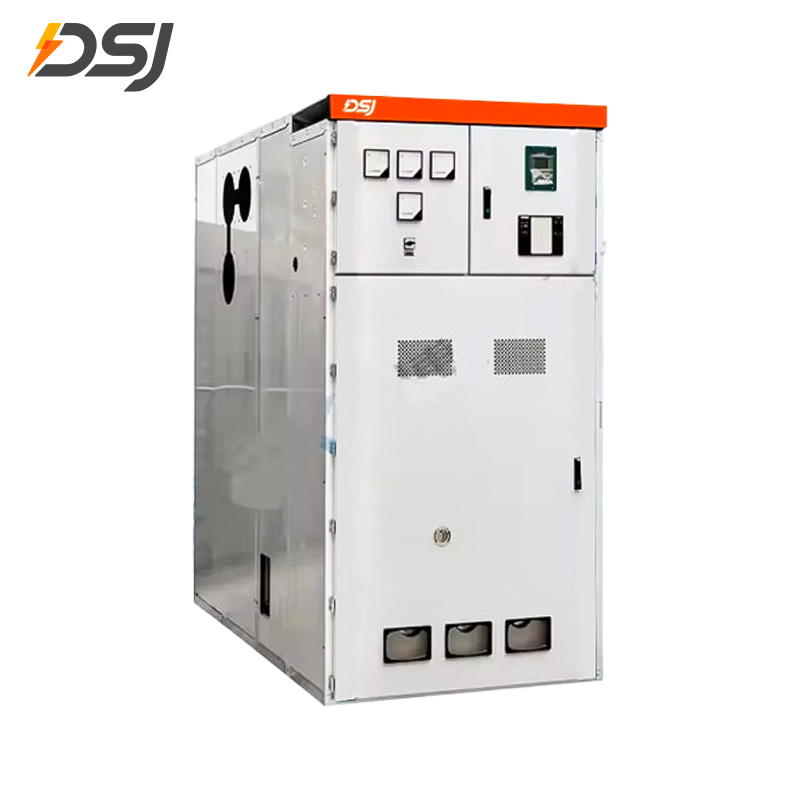

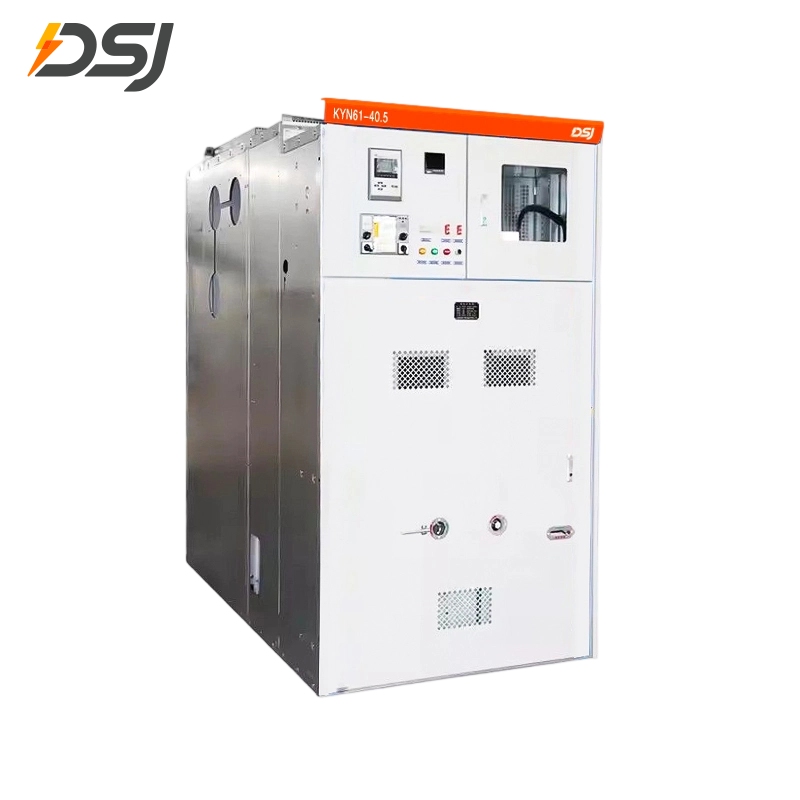

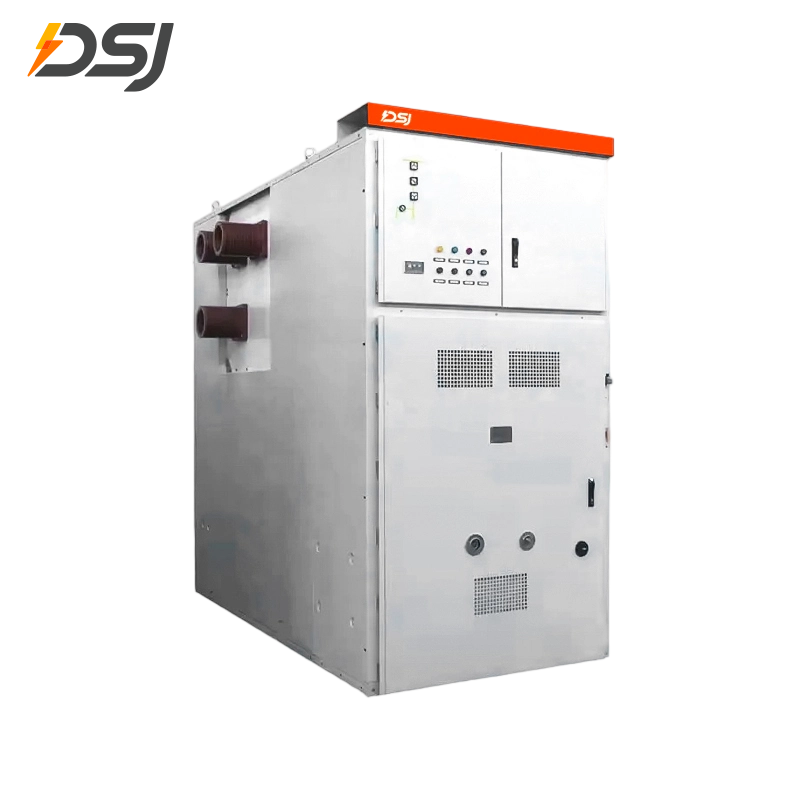

KYN61-40.5 CE/UL Certified Metal Clad Switchgear Medium Voltage Switchgear/Switchboard

The medium voltage switchgear is engineered for efficient and reliable power management in a wide range of applications, from industrial facilities and commercial complexes to utility substations. This metal-clad switchgear features robust construction, integrated safety protection, and intelligent monitoring systems that ensure optimal performance even under demanding conditions. The modular design of MV switchgear allows for flexible configuration and easy maintenance, reducing downtime and enhancing overall system efficiency.

contact us Prev ProductNext Product

Standard Capacity

Material	Aluminum-zinc coated steel plate, cold-rolled steel plate
Origin	China
Protection Rating	IP4X
Rated Frequency	50Hz、60Hz
Rated Voltage	40.5kV
Rated Insulation Voltage	Phase-to-phase, phase-to-ground 95kV; Circuit breaker contact, isolator contact 110kV
Rated Impulse Withstand Voltage	Phase-to-phase, phase-to-ground 185kV; Circuit breaker contact, isolator contact 215kV
Auxiliary Circuit Rated Voltage	AC/DC 110V, 220V
Rated Current	1250A-2000A
Rated Current of Horizontal Busbar	1250A-2000A
Rated Current of Vertical Busbar	1250A-2000A
Rated Short-Time Withstand Current of Horizontal Busbar	80kA
Rated Peak Withstand Current of Horizontal Busbar	105kA-176kA
Rated Short-Time Withstand Current of Vertical Busbar	80kA
Rated Peak Withstand Current of Vertical Busbar	105kA-176kA

Product Features

High Performance:

Provides reliable and stable operation under medium voltage conditions, ensuring continuous power distribution with minimal downtime.
Enhanced Safety:

Features advanced protection mechanisms, including overcurrent and short-circuit protection, to ensure the safety of both equipment and personnel.
Compact Design:

Space-saving design ideal for areas with limited installation space, such as urban substations and compact industrial setups.
